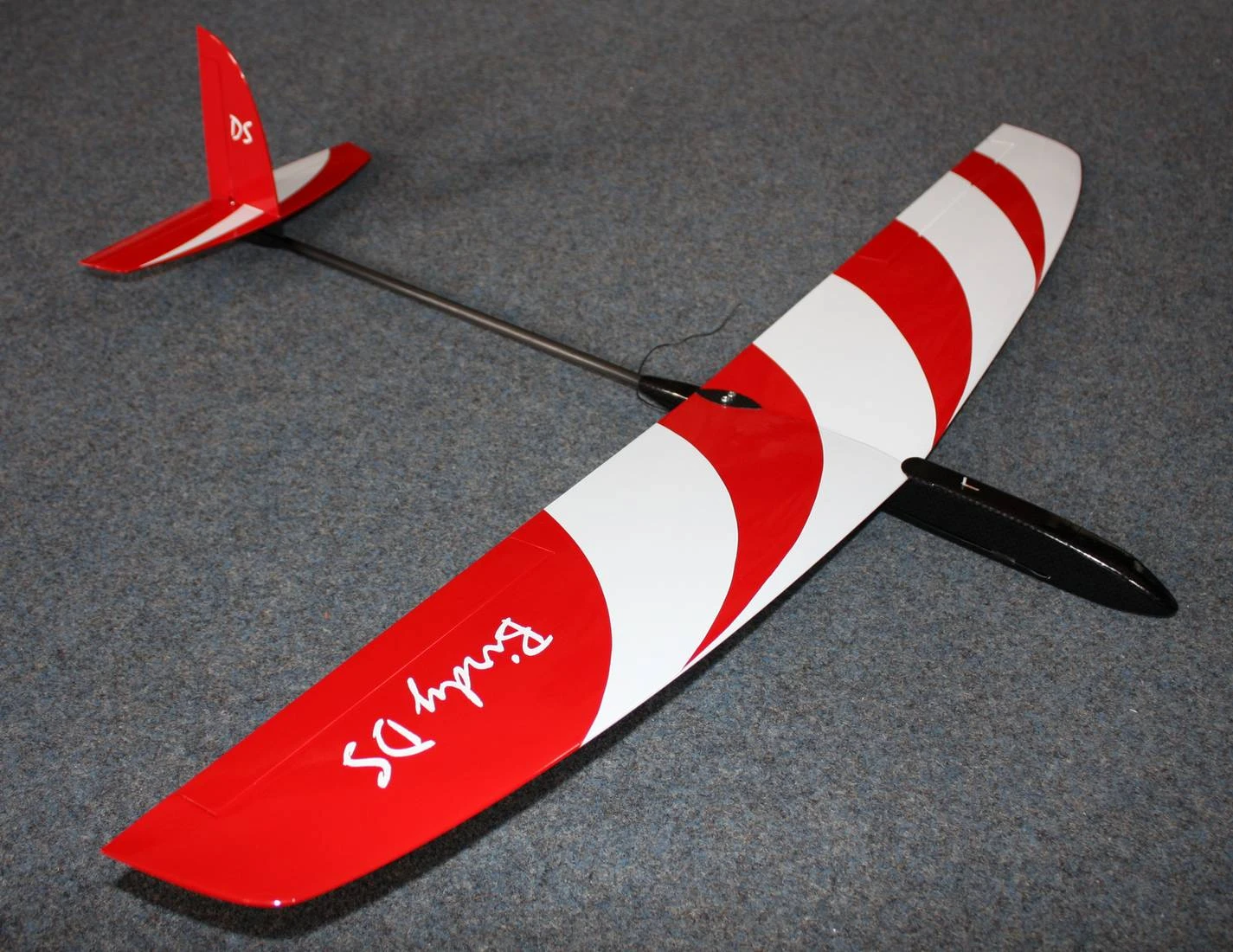

Birdy DS 1m

Don’t you want a handy slope model that’s also “Flitschenfest”? Or a model with a mercilessly solid wooden construction, which you can also fly on the front or the backside of a slope? Then let the new Birdy DS convince you!

The most important changes from the Birdy-DS at a glance:
Wing profile (HN 871)

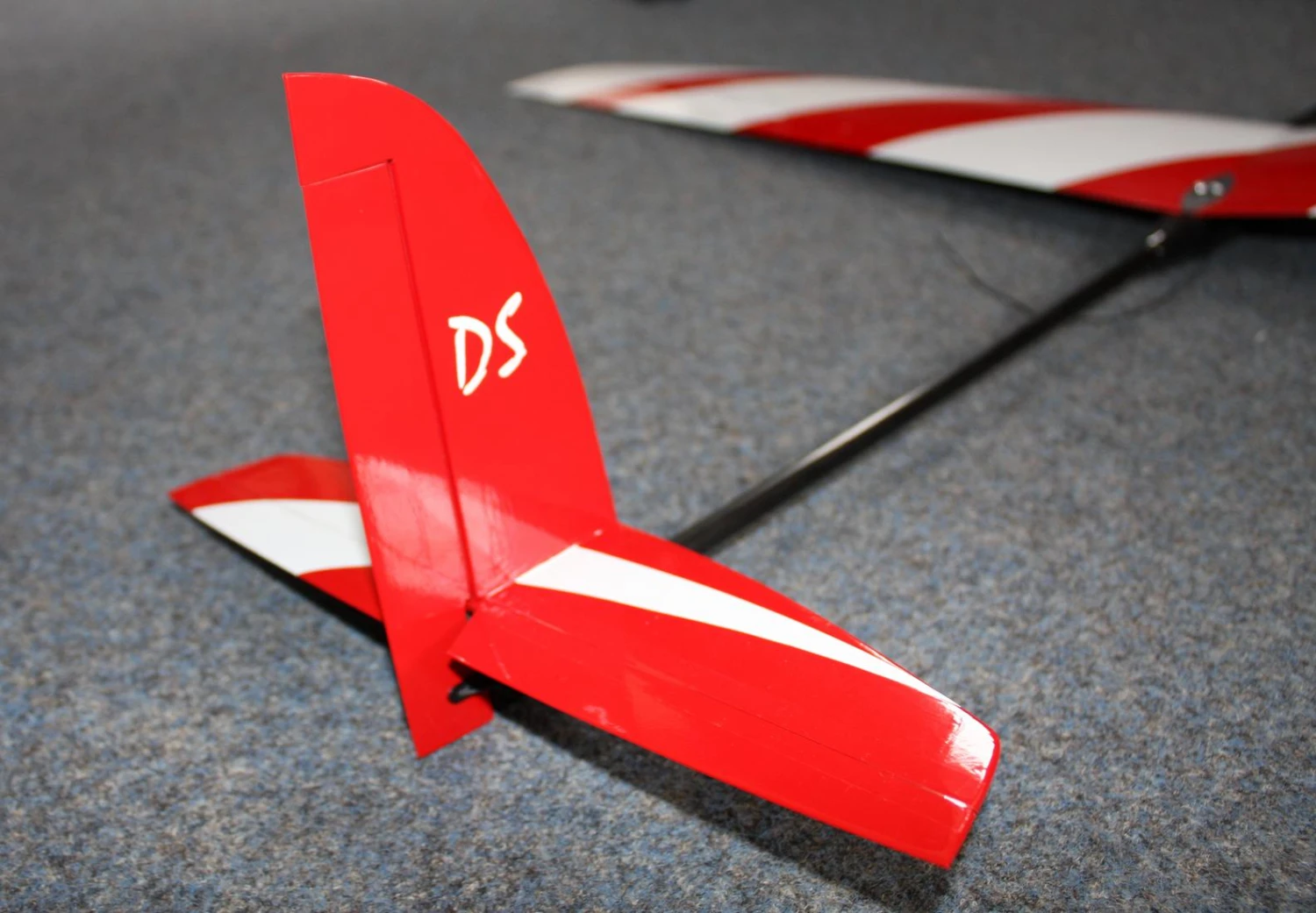

Cross-tail without underslung fin
Smaller ailerons to avoid flutter
Stiff control runs with cross-strengthening,
Very sturdy fuselage with continuous plywood reinforcement
Of course a Flitschenhaken!

If you want to leave your valuable crunchies (molded models) on the ground when flying new slopes, or want to fly at a new location without cares or worries then you will make the right choice with a Birdy-DS.

Kit Contents:
CNC-Milled and laser components
Multi-colored full size plan
German-language building instructions
All small parts….

Birdy DS Specifications
Wing span	1.00 m	39 in
Wing area	14.4 dm2	223 sq in
Length	81 cm	31.9 in
Flying weight from	350 g	12.3 oz
Wing loading	24.3 g/dm	8.0 oz/sq ft
Aspect ratio	6.9
Wing airfoil	HN 871
Dihedral angle	3.0º
Centre of Gravity	TBA mm from wing leading edge
Controls	Rudder, elevator, ailerons

Birdy DS Typical Weights
Total structure	290.0 g	10.2 oz
Receiver	4.5 g	0.2 oz
Rudder servo	4.5 g	0.2 oz
Elevator servo	4.5 g	0.2 oz
Aileron servos (2)	9.0 g	0.3 oz
Battery	20.0 g	0.7 oz
Noseweight	17.5 g	0.6 oz
Flying weight	350.0 g	12.3 oz

Recommended R/C-nano gear only
Elevator & rudder servos	Ripmax SD100, Blue Bird BMS-101AMG, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10S, KST X08
Aileron servos (2)	Ripmax SD100, Blue Bird BMS-101AMG, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10S, KST X08
Receiver	Spektrum AR6260*, AR6100e, AR400, Futaba R6004FF*, Orange DSM2 compatible, Jeti Duplex R4 & R5, Multiplex Mlink RX-6-DR Light*, FrSky D4R II
Battery	HyperLipo 2S 300 mAh, 150 mAh 4.8V, 1S 300 – 500mAh LiPo

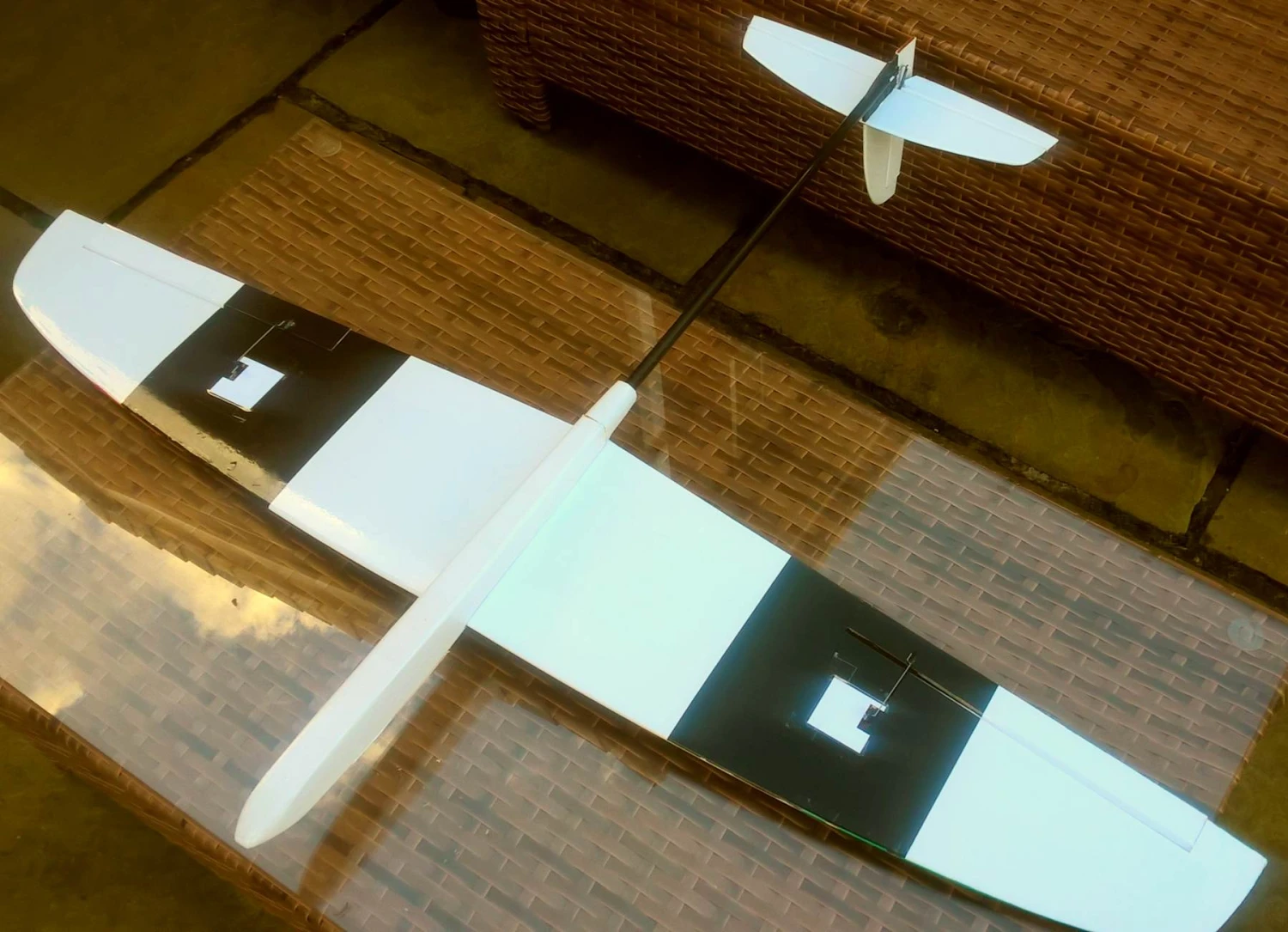

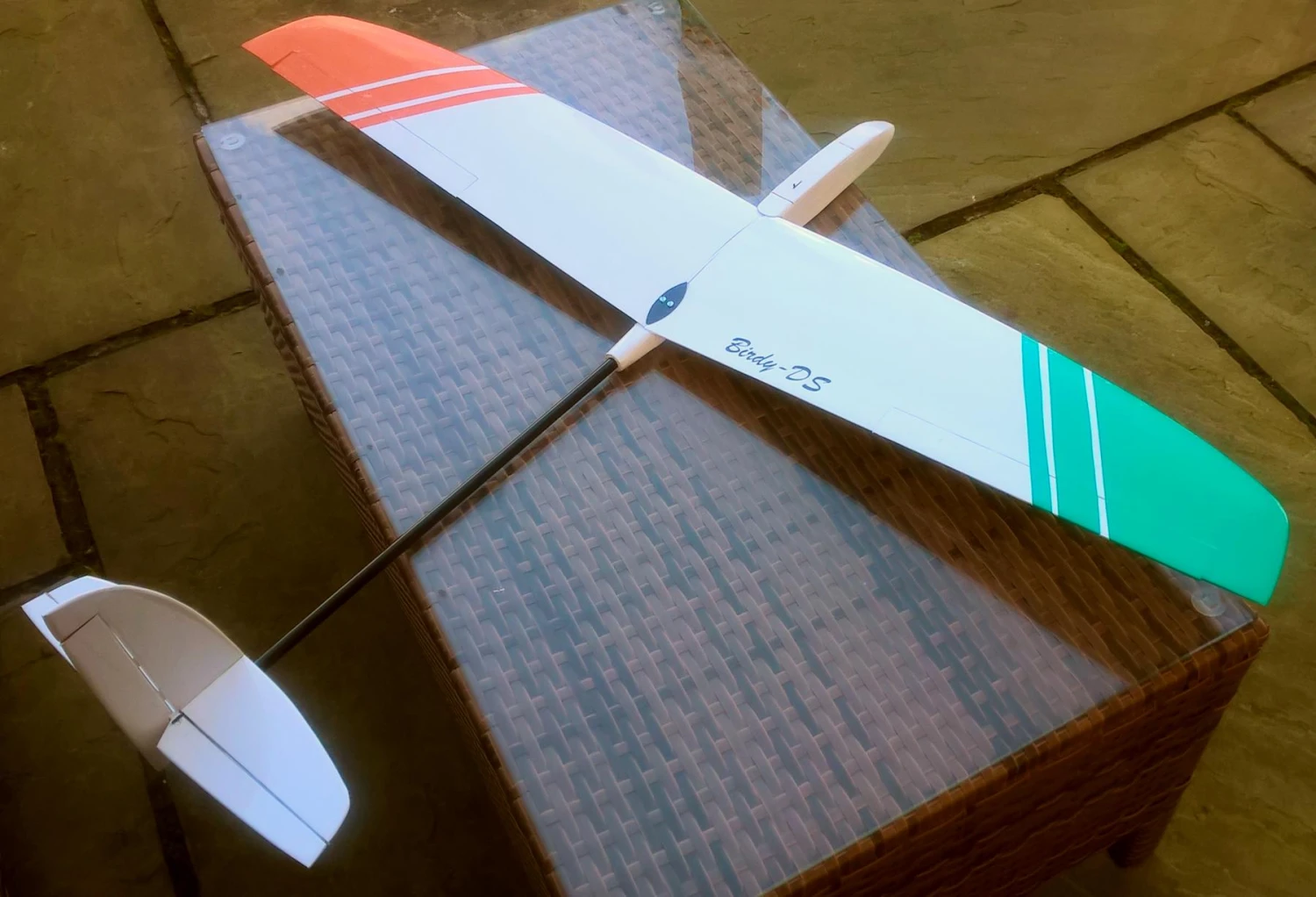

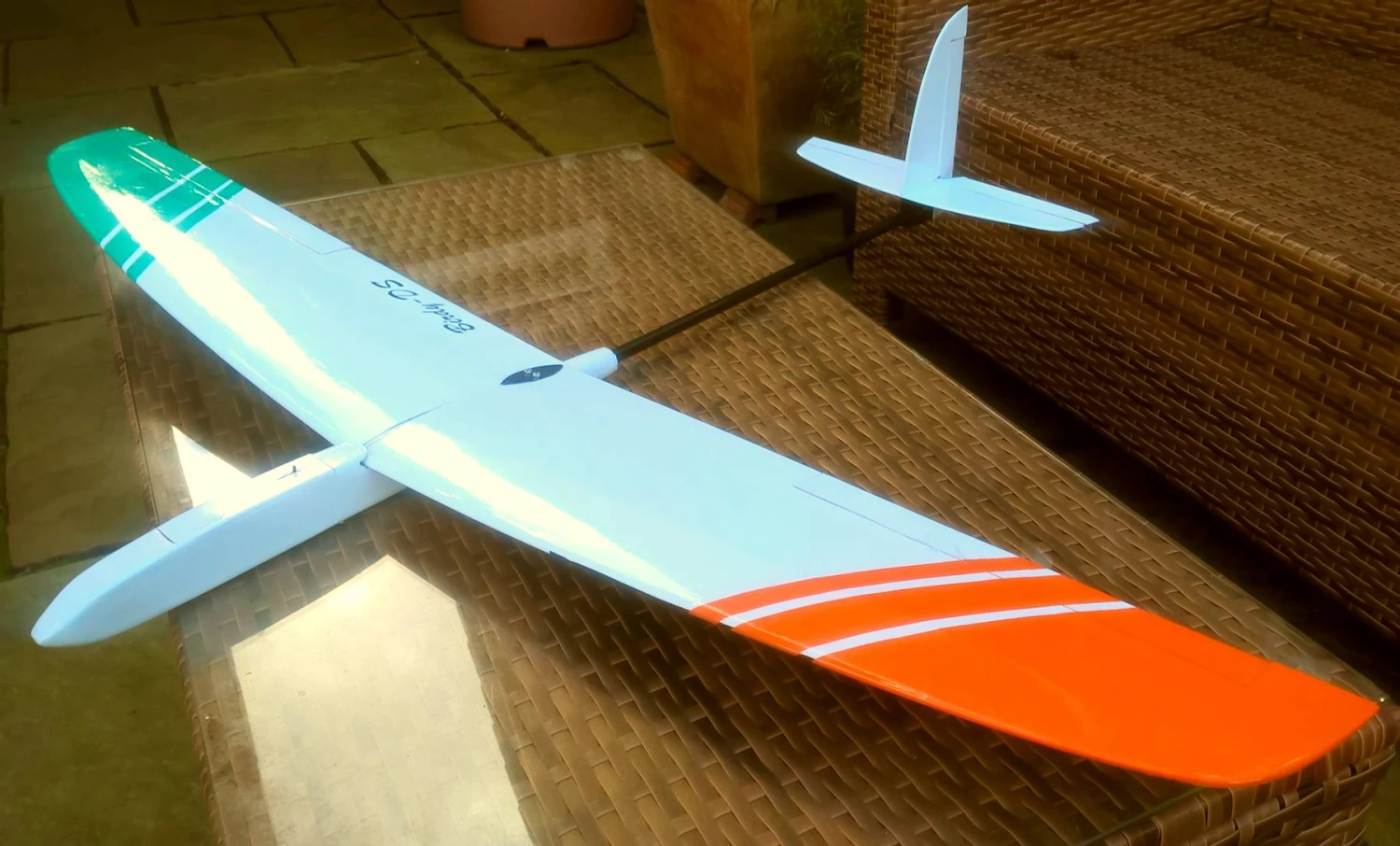

Our thanks to Mel Jones for use of his photos.
