Dream 2.0 Electric 2m Hotliner

The Dream 2.0 Electric is fast 2m electric hotliner. This model is nicely finished with great graphics. The design is conventional apart from a hatch aft of the wing for the tail servos, to allow maximum space to be used for the powertrain and battery. We are just stocking the all carbon version, and this is a very strong very heavy layup which should hold up well to high power setups.

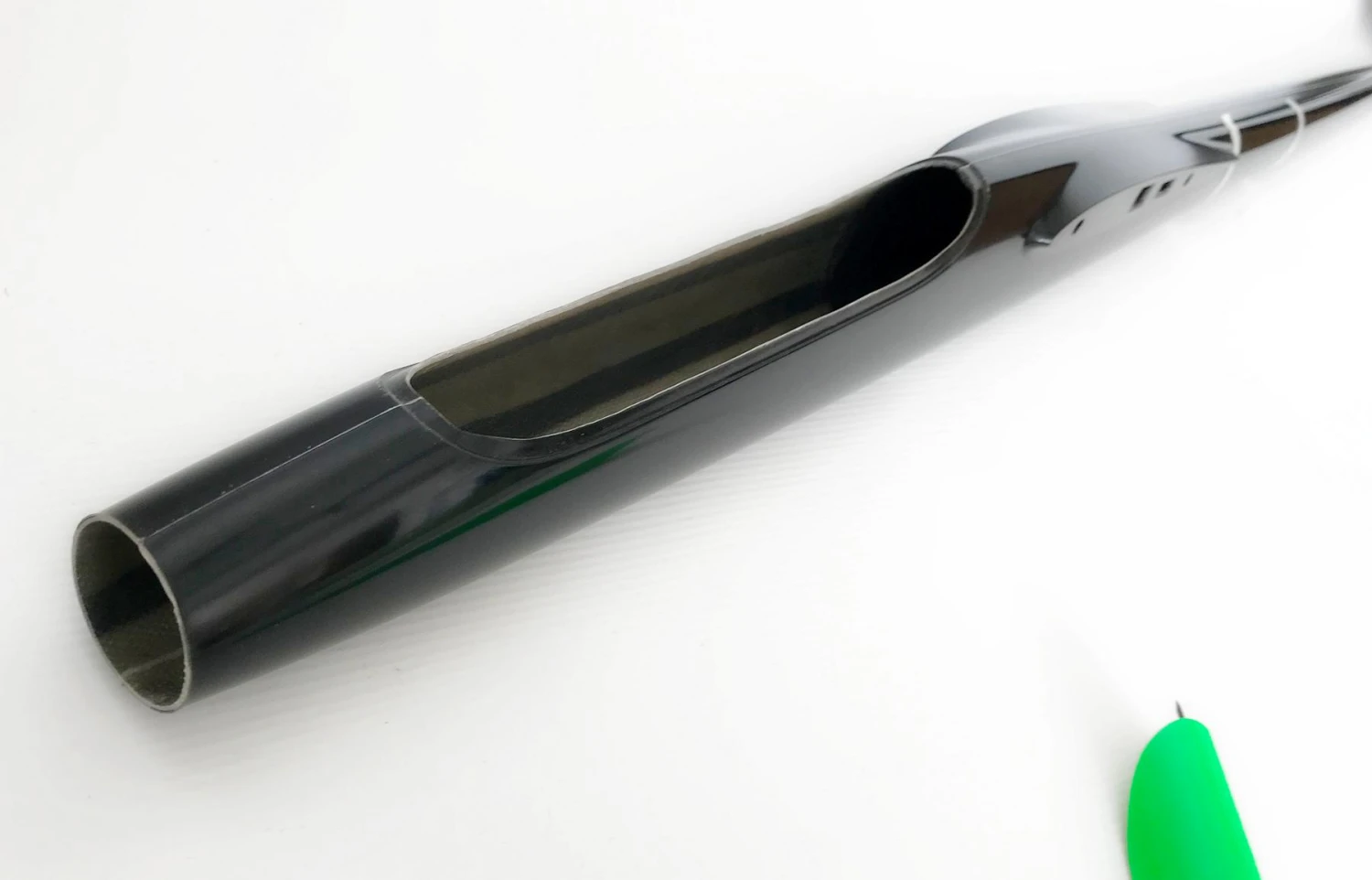

The fuselage has a good sized canopy hatch. No firewall has been fitted but a thick 36 mm firewall is included in the complete accessory pack. The fin incorporates a nicely engineered bell crank to actuate the all-flying tail, and an access hatch for connecting the linkage.

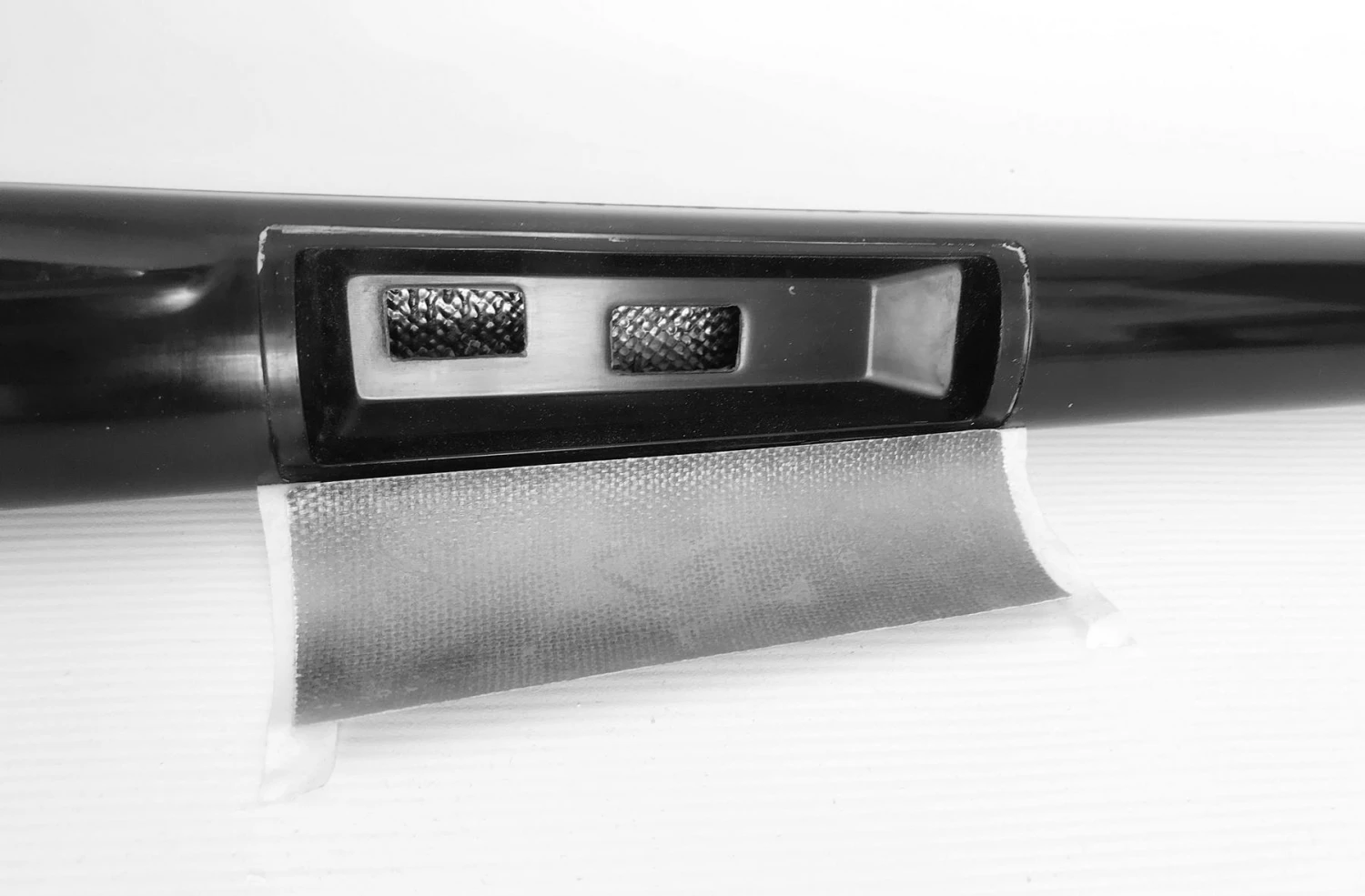

The two part wing is nicely finished and of hollow molded construction. The through-fuselage wing joiner is very substantial and imparts just one degree of dihedral per panel, ensuring good aerobatic performance and an attractive look in the air. The wing has generous sized access hatches for the flap and aileron servos which can be up to 10 mm thick.

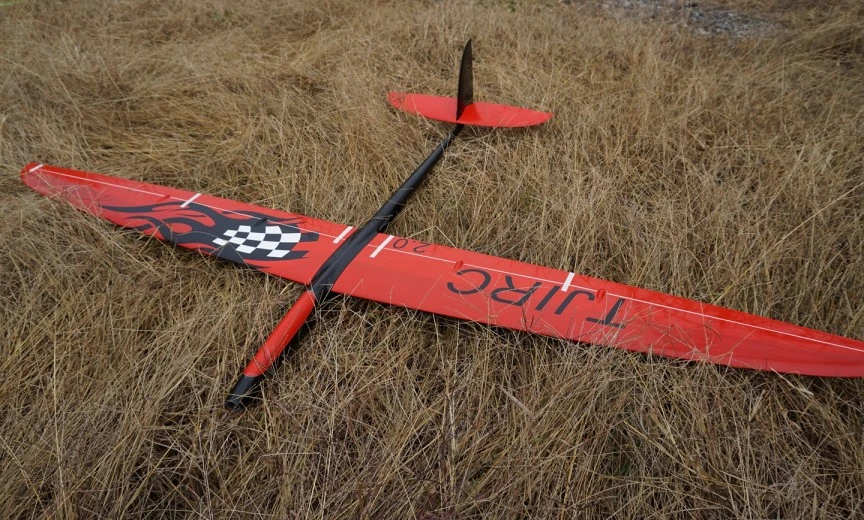

The photos mostly show the glider version, but we stock both glider and electric Dream 2.0 models, and electric Dream 2 versions do have the nosecone removed, and a firewall supplied.

The supplied accessories include all control horns, four plywood wing servo frames (for KST X10 or similar sized servos), and clevises and control rods for the flap and aileron connections. No build manual is available but assembly is straight-forward. Note that although the furface finish is generally good the fit and finish of the model is not up to that of a top price European model. Small bumps and fit problems are normal at this price-point.

Dream 2 Hotliner Specifications
Wing span	2.0 m	79 in
Wing area	32.2 dm2	499 sq in
Length inc spinner	119 cm	46.8 in
Flying weight from	1655 g	58.4 oz
Wing loading	51.4 g/dm	16.8 oz/sq ft
Aspect ratio	12.4
Wing airfoil	Proprietary
EDA (dihedral)	1.0º
Spinner Diameter	36 mm
Centre of Gravity	65-80 mm from wing leading edge
Controls	Rudder, elevator, ailerons, flap, throttle

Dream 2 Hotliner Typical Weights
Fuselage	300 g	10.6 oz
Wings	674 g	23.8 oz
Tail Plane	53 g	1.9 oz
Wing joiner	77 g	2.7 oz
Accessories	35 g	1.2 oz
Total structure	1139 g	40.2 oz
Wiring	24 g	0.8 oz
Pushrods	12 g	0.4 oz
Receiver	8 g	0.3 oz
Rudder servo	10 g	0.4 oz
Elevator servo	10 g	0.4 oz
Wing servos (4)	50 g	1.8 oz
Speed control	50 g	1.8 oz
Motor	150 g	5.3 oz
Prop & spinner	22 g	0.8 oz
Battery	180 g	6.3 oz
Flying weight	1655 g	58.4 oz

Recommended Servos
Rudder & Elevator	KST X10-710, KST DS145, KST X12-508, KST MS320, MKS HV6130H
Flap	KST X10, KST DS125, MKS HBL6625, MKS HV6130
Aileron	KST X10 Mini, KST X10, KST DS135, KST DS125, MKS HBL6625 Mini, MKS HV6130

Dream 2.0 Powertrain Recommendations
XPower F3426/7 Storm	2Ah 3S LiPo, 13×8,12×9
XPower F3426/7 Storm	2Ah 4S LiPo, 11×8,10×8
Axi 2820/10 V2 Long	2Ah 3S LiPo, 10×8, 11×7
Axi 2820/14 V2 Long	2Ah 4S LiPo, 10×8, 11×7
Axi 2826/8 V2 Long	2Ah 3S LiPo, 10×8, 13×8
Axi 2826/8 V2 Long	2Ah 4S LiPo, 10×8, 11×7
Leomotion L3025-4550	2Ah 4S LiPo, 14×9, 15×8
Powerline Micro 1520/10	1.2Ah 4S LiPo, 15×10, 16×8

Recommended Control Throws
Rudder	20 mm each way
Elevator	12 mm up / 12 mm down
Ailerons	14 mm up / 10 mm down
Flap	45 mm down
Crow brake mix	10 mm up aileron with full down flap

Chinese video of Dream 2.0
