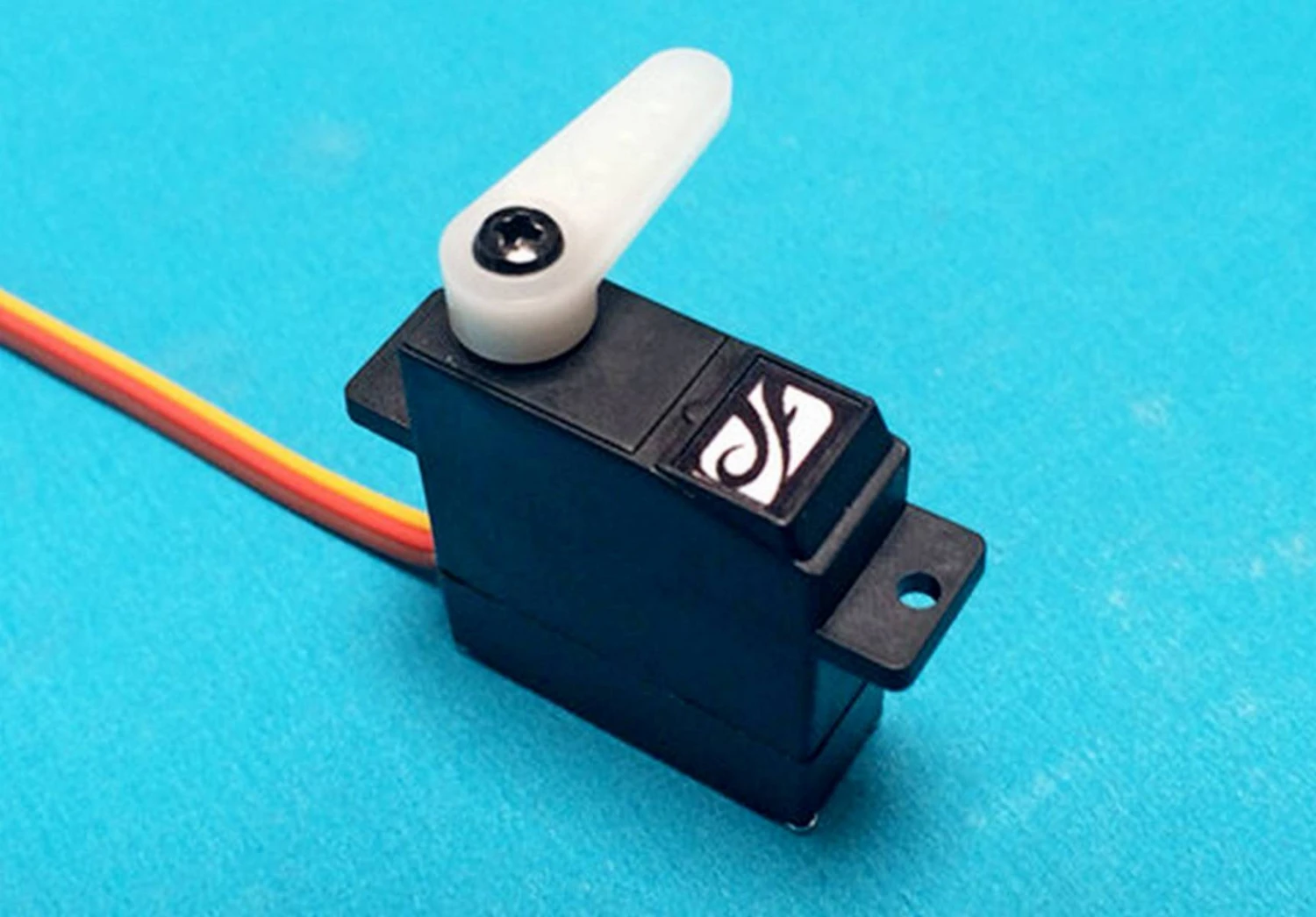

Dream-Flight 12.4g – 9.4mm 11.5g 2.4Kg.cm Metal Gear Servo

A good quality 12.4g digital metal gear servo suitable for the Weasel-Trek

The Dream Flight 12.4g Digital Servo fits the Ahi and the Weasel-Trek gliders perfectly and provides great performance and durability at an affordable price. Dream-Flight tested this servo rigorously in the air and on the bench and found that its speed, torque, and centering precision are excellent, giving a very fast and precise control response. Another nice feature is the output gear/shaft is supported by a bearing on top and bottom. So 2 ball bearings.

Dream Flight DFFA009 12.4g Specifications
Body dimensions	23.4 mm wide x 9.4 mm thick x 26.2 mm high	0.92″ wide x 0.37″ thick x 1.03″ high
Max dimensions	32.1 mm wide x 9.4 mm thick x 31.5 mm high	1.26″ wide x 0.37″ thick x 1.24″ high
Stall torque (4.8V)	2.40 kg.cm	33 oz.in
Weight	11.5 g	0.41 oz
Lead length	15 cm	6.0 in
Operating voltage	4.8V to 6.0V
Bearings	2 Ball Bearings
Gear material	Metal
Case material	Plastic
Motor type	DC motor
Digital	Yes
Programmable	No
Supplied accessories	2 Plastic output arms, 2 Arm retaining screws, 4 Mouning screws.

These servos are designed for 4.8V operation from a 4 cell NiMH battery. They are NOT okay on a 2S LiPo battery without a voltage regulator to drop the voltage to 6V or lower.
