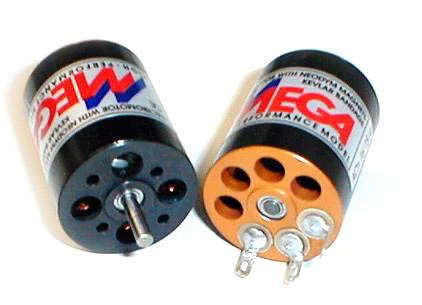

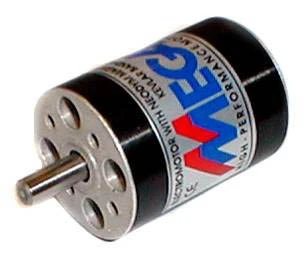

Mega 16/15/5 1800 RPM/V 77g Inrunner

The Mega 16/15/5 Brushless Motor is a Speed 400 sized brushless motor that is powerful, efficient and reliable. Recommended for sports models and electric gliders.

• Hardened steel shaft, diameter 3.2 mm.
• Two precise ball bearings
• Dynamically balanced
• Neodymium magnet rotor
• Handmade stator, lightweight rotor allows high revolution.
• Kevlar bandage rotor
• Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
• Efficiency up to 86%

Mega 16/15/5 Specifications
Motor name	Mega 16/15/5	inrunner
Motor weight	77.0 g	2.72 oz
Motor diameter	28.0 mm	1.10 in
Motor length	36.0 mm	1.42 in
Lead length	0.0 cm	0.00 in
Shaft diameter	3.2 mm	0.12 in
Mounting info	2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm	68 mR
Estimated Kv	1800 RPM/V
Estimated Geared Kv	1800 RPM/V
Estimated Io	0.80 A @ 10 V
Max efficiency (10 V)	86 % @ 10.8 A
Operating effic’y (10 V)	80 % @ 25.0 A
Motor Km	20.3 Nm/W^.5 X1000
Motor Km/Kg	264 Nm/(W^.5 Kg)
Recommended battery	3S LiPo
Rec max LiPo capacity	1.5 Ah
Supplied accessories	None
3S LiPo Performance
Recommended prop	8×4
Input power	290 W on 8×4 prop
Current	29.0 A on 8×4 prop
Rate of climb	7.5 m/s for 800 g glider
