Mega 16/20/2 107g 3100 RPM/V 107g Inrunner

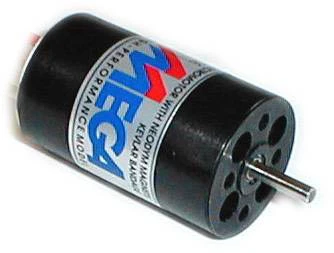

The Mega 16/20/2 Brushless Motor is a longer Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.

• Hardened steel shaft, diameter 3.2 mm.
• Two precise ball bearings
• Dynamically balanced
• Neodymium magnet rotor
• Handmade stator, lightweight rotor allows high revolution.
• Kevlar bandage rotor
• Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
• Efficiency up to 87%

Mega 16/20/2 Specifications
Motor name	Mega 16/20/2	inrunner
Motor weight	107.0 g	3.77 oz
Motor diameter	28.0 mm	1.10 in
Motor length	46.0 mm	1.81 in
Lead length	0.0 cm	0.00 in
Shaft diameter	3.2 mm	0.12 in
Mounting info	2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm	13 mR
Estimated Kv	3100 RPM/V
Estimated Geared Kv	3100 RPM/V
Estimated Io	3.30 A @ 10 V
Max efficiency (10 V)	87 % @ 50 A
Operating effic’y (10 V)	87 % @ 50 A
Motor Km	27.0 Nm/W^.5 X1000
Motor Km/Kg	252 Nm/(W^.5 Kg)
Recommended battery	3S LiPo
Rec max LiPo capacity	1.5 Ah
Supplied accessories	None
3S LiPo Performance
Recommended prop	5.5×5
Input power	500 W on 5.5×5 prop
Current	50.0 A on 5.5×5 prop
