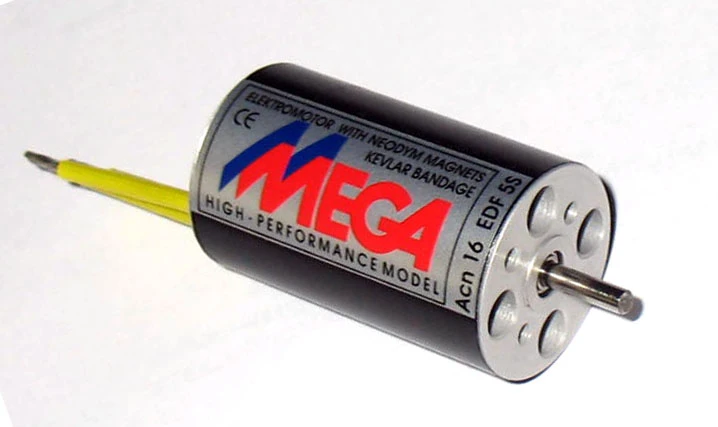

Mega 16/25/2 2600 RPM/V 110g Inrunner

The Mega 16/25/2 Brushless Motor is a longer Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.

• Hardened steel shaft, diameter 3.2 mm.
• Two precise ball bearings
• Dynamically balanced
• Neodymium magnet rotor
• Handmade stator, lightweight rotor allows high revolution.
• Kevlar bandage rotor
• Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
• Efficiency up to 86%

Mega 16/25/2 Specifications
Motor name	Mega 16/25/2	inrunner
Motor weight	110.0 g	3.88 oz
Motor diameter	28.0 mm	1.10 in
Motor length	46.0 mm	1.81 in
Lead length	0.0 cm	0.00 in
Shaft diameter	3.2 mm	0.12 in
Mounting info	2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm	16 mR
Estimated Kv	2600 RPM/V
Estimated Geared Kv	2600 RPM/V
Estimated Io	3.40 A @ 10 V
Max efficiency (10 V)	86 % @ 46.1 A
Operating effic’y (10 V)	85 % @ 60.0 A
Motor Km	29.0 Nm/W^.5 X1000
Motor Km/Kg	264 Nm/(W^.5 Kg)
Recommended battery	3S LiPo
Rec max LiPo capacity	2 Ah
Supplied accessories	None
3S LiPo Performance
Recommended prop	6×7
Input power	600 W on 6×7 prop
Current	60.0 A on 6×7 prop
4S LiPo Performance
Recommended prop	5.5×5.5
Input power	800 W on 5.5×5.5 prop
Current	64.0 A on 5.5×5.5 prop
