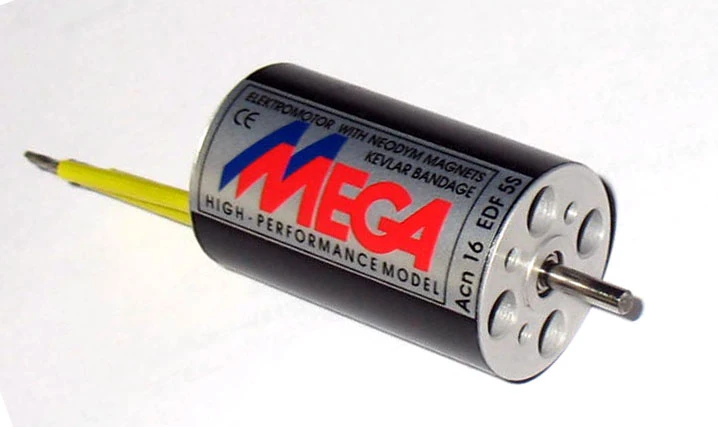

Mega 16/25/3 1750 RPM/V 116g Inrunner

The Mega 16/25/3 Brushless Motor is a long Speed 400 sized brushless motor that is powerful, efficient and reliable. Recommended for sports models and electric gliders.

Mega 16/25/3 Specifications
Motor name	Mega 16/25/3	inrunner
Motor weight	116.0 g	4.09 oz
Motor diameter	28.0 mm	1.10 in
Motor length	46.0 mm	1.81 in
Lead length	0.0 cm	0.00 in
Shaft diameter	3.2 mm	0.12 in
Mounting info	2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm	35 mR
Estimated Kv	1750 RPM/V
Estimated Geared Kv	1750 RPM/V
Estimated Io	1.30 A @ 10 V
Max efficiency (10 V)	87 % @ 19.3 A
Operating effic’y (10 V)	83 % @ 40.0 A
Motor Km	29.2 Nm/W^.5 X1000
Motor Km/Kg	251 Nm/(W^.5 Kg)
Recommended battery	3S LiPo
Rec max LiPo capacity	2 Ah
Supplied accessories	None
3S LiPo Performance
Recommended prop	8×5
Input power	390 W on 8×5 prop
Current	39.0 A on 8×5 prop
Rate of climb	10 m/s for 800 g glider
4S LiPo Performance
Recommended prop	7×4.5
Input power	520 W on 7×4.5 prop
Current	40.0 A on 7×4.5 prop
Rate of climb	11 m/s for 800 g glider
