Mirai F3-RES F5-RES 2m

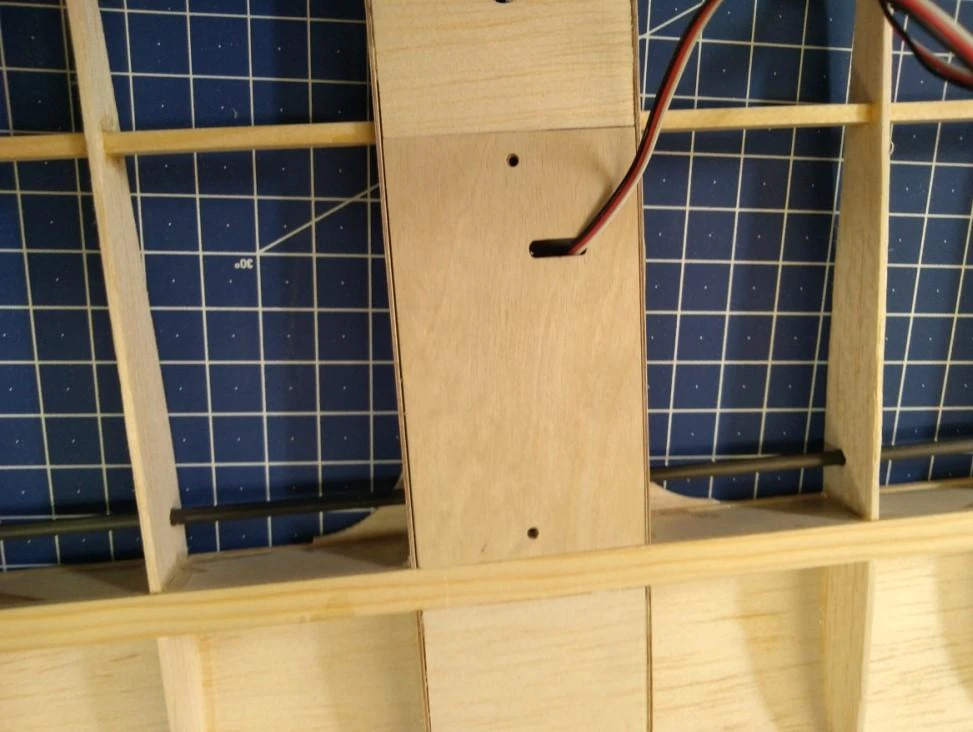

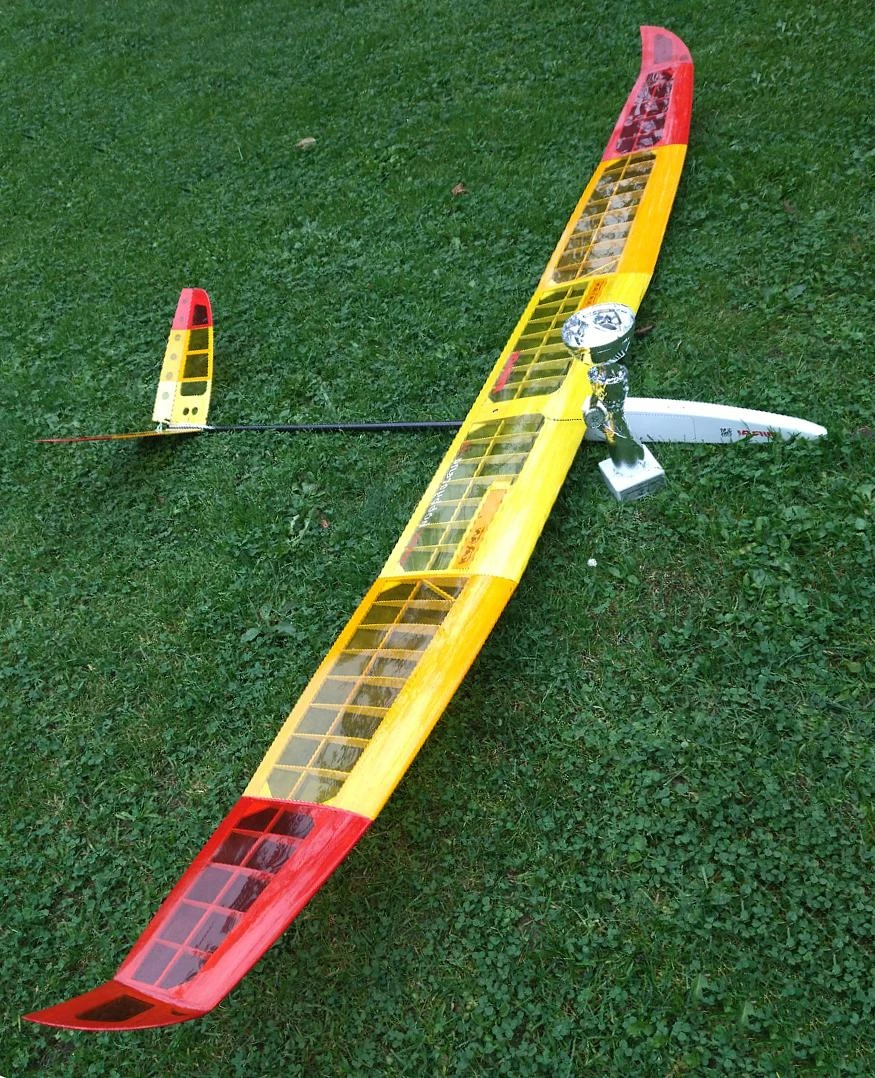

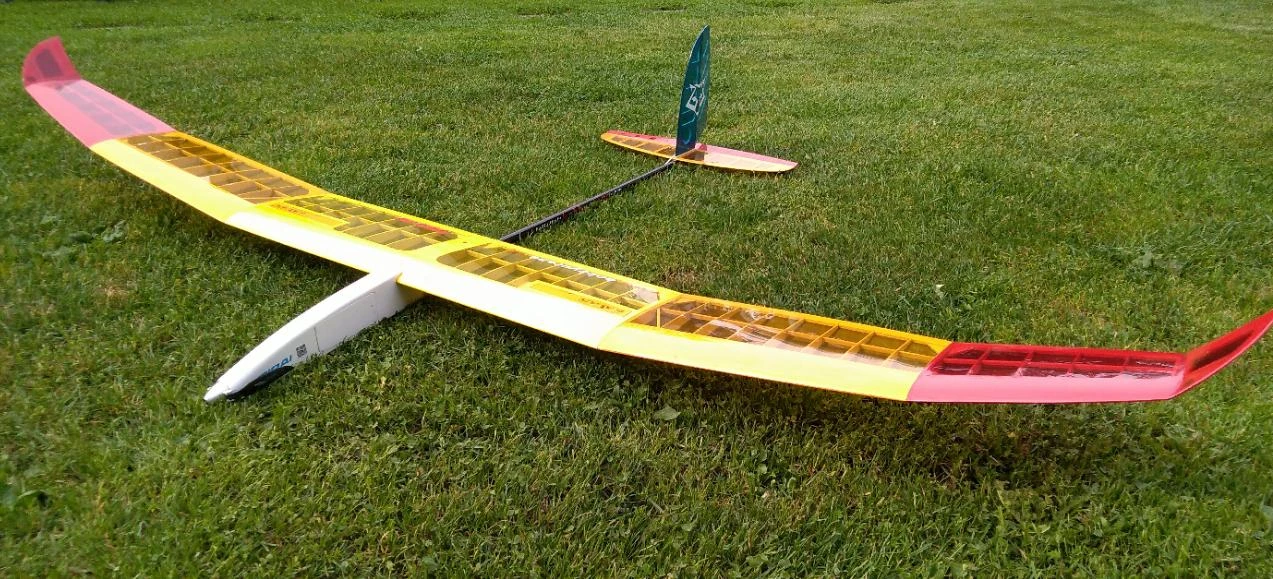

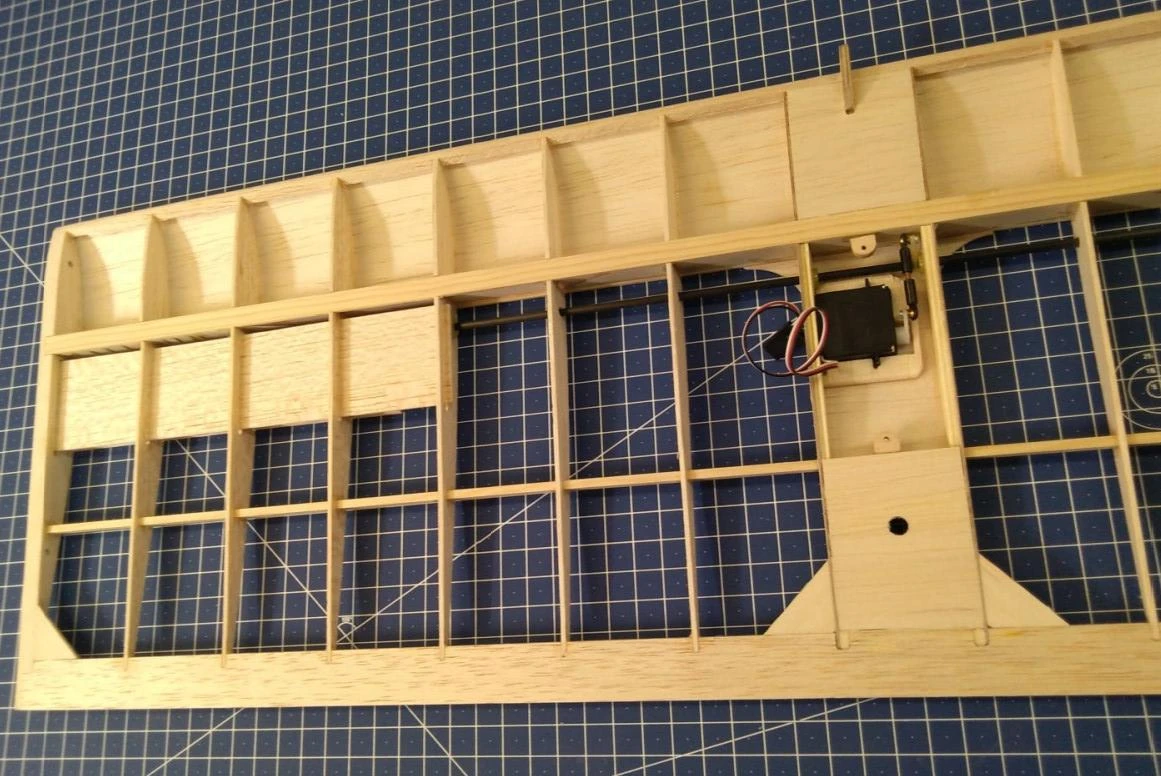

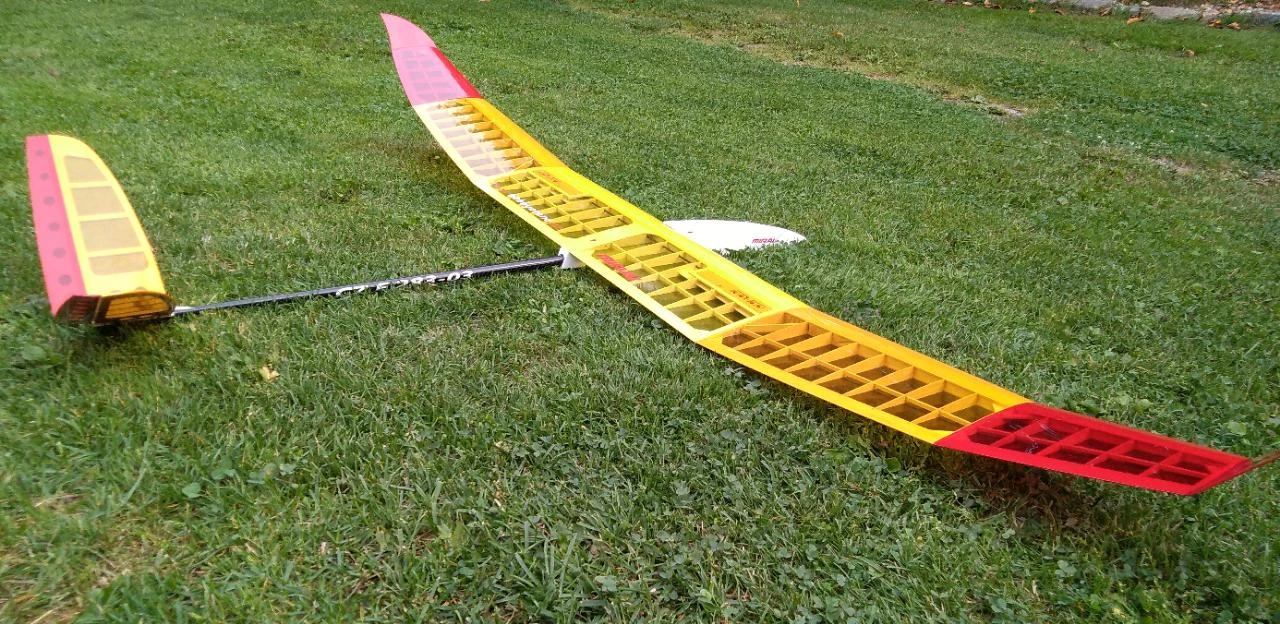

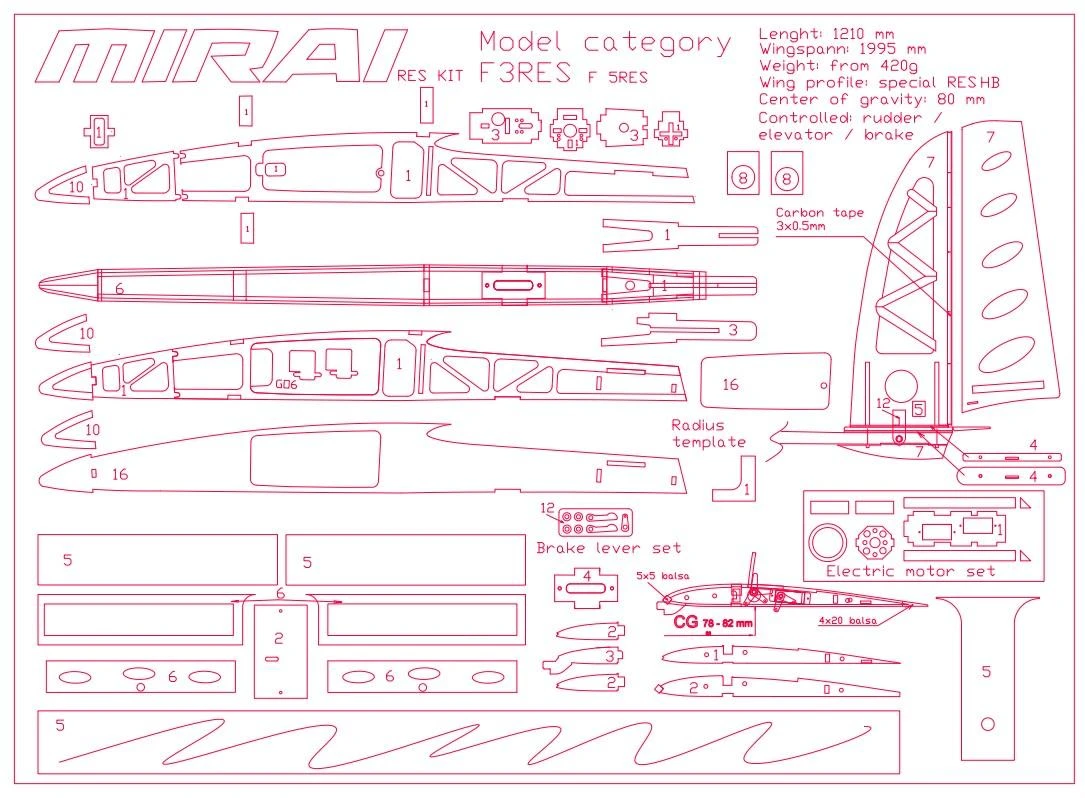

The beautiful Mirai 2m RES glider kit is one of the most rewarding aircraft models for modellers – nothing compares to relaxation flying in weak conditions, circling under clouds and flying quietly in the evenings where you can sit back and watch your elegant model almost fly itself. The Mirai is a built from a nicely CNC cut balsa and ply kit, and is an upgrade from the manufacturer’s previous well acclaimed Circle Dancer 2000 model.

These 2m models, launched using a hi-start and controlled only by rudder, elevator and spoiler have their special competition category, now called F3L, in which is not about showing off, but about flying with similarly like minded model fliers. There is also a category F5-RES for two-meter gliders with electric propulsion.

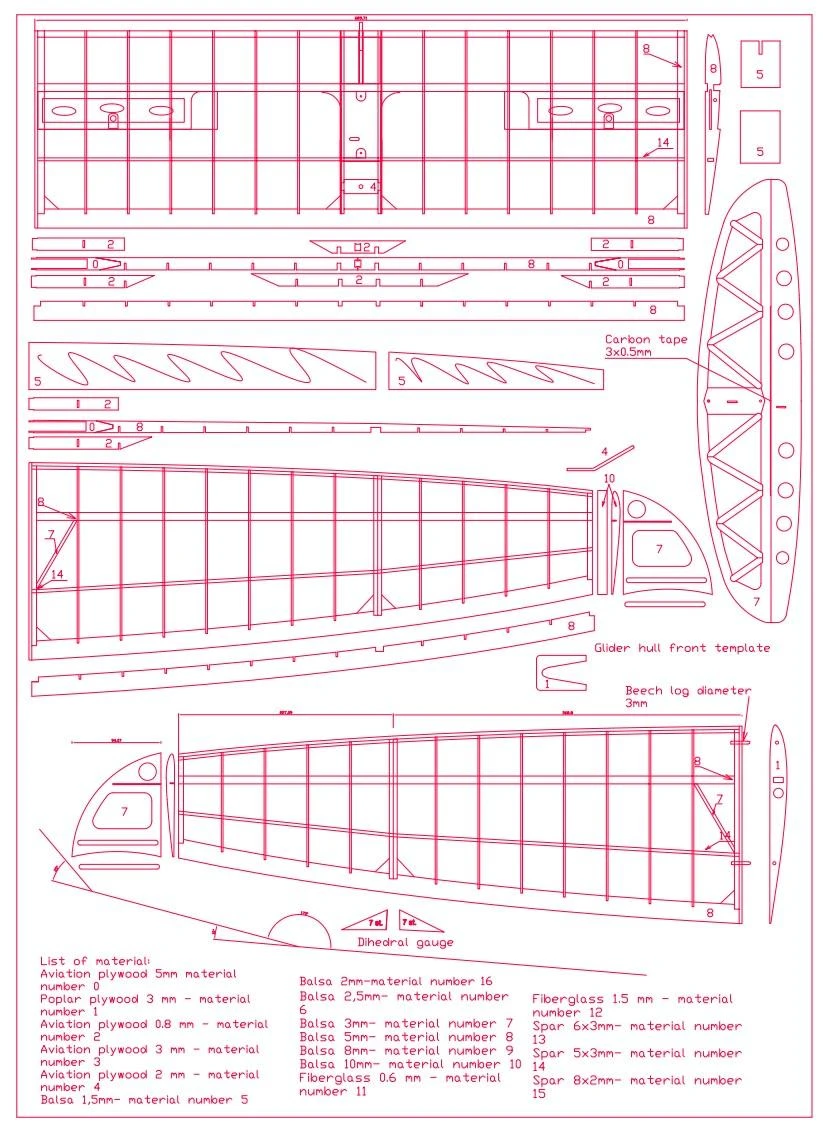

The Mirai 2m is also ideal for anyone who wants to start building their own model the classic way out of balsa, plywood and spruce. It’s fairly quick and there isn’t much to build – MIRAI is easy model to build, though it’s not suitable for absolute beginners.

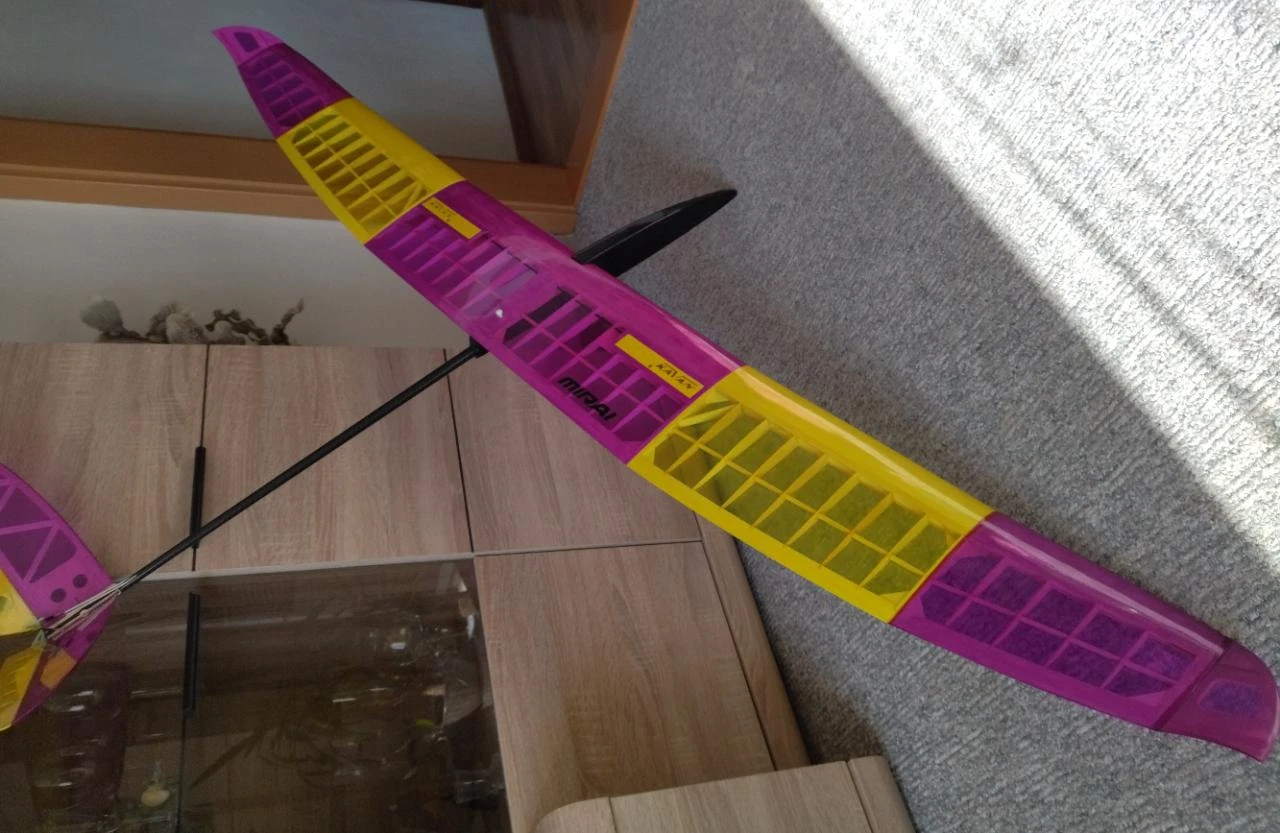

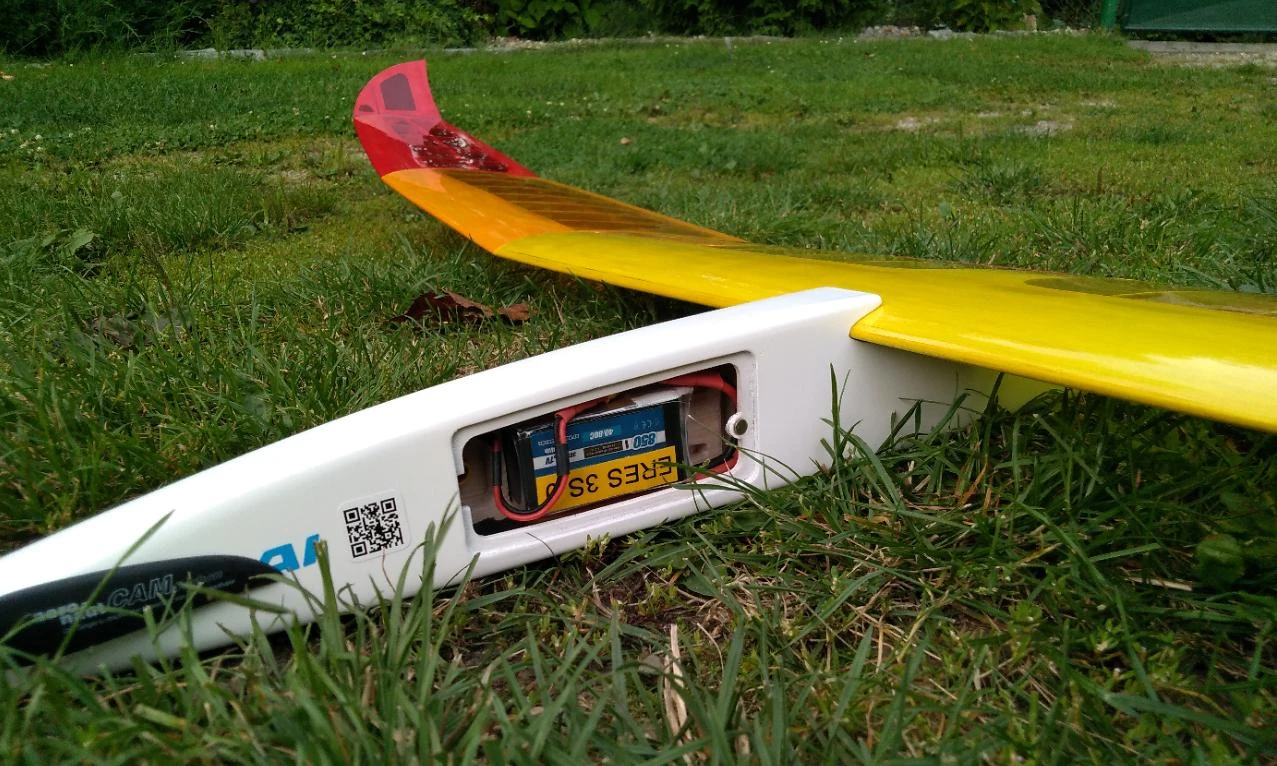

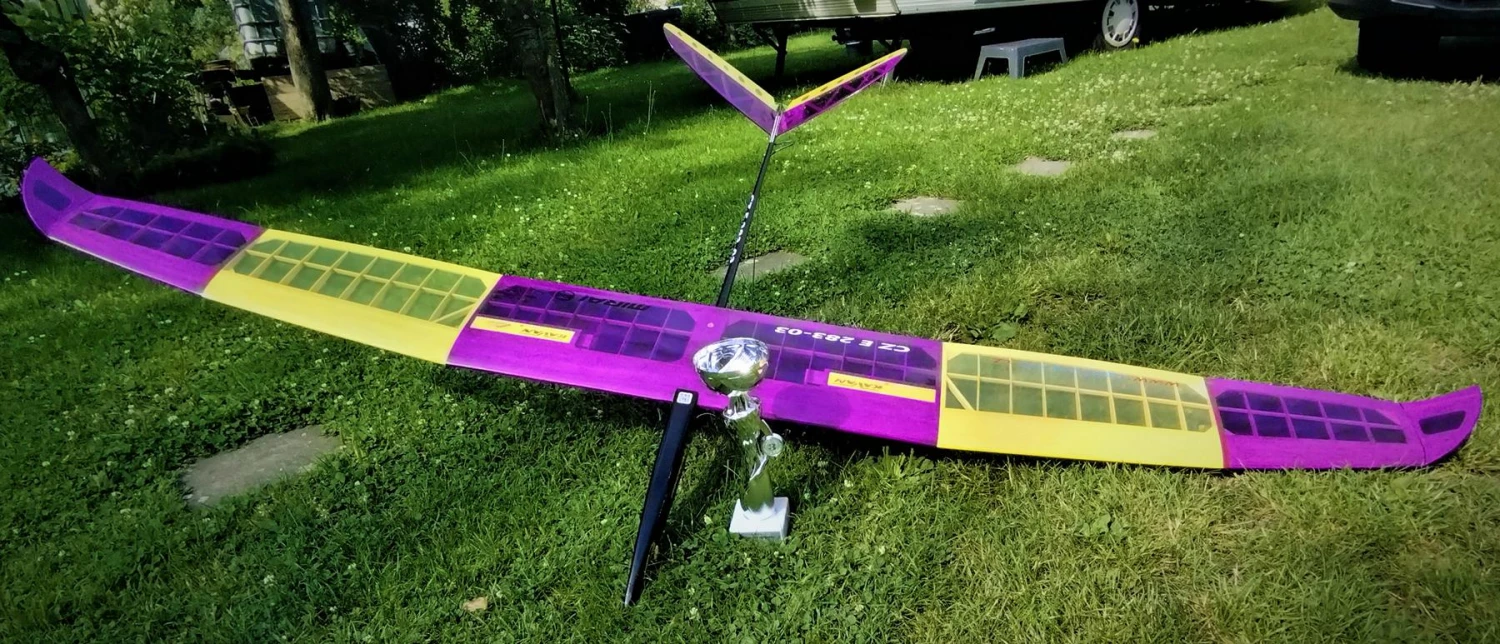

The Mirai can be built as a pure glider or as an electric glider, and is available in V tail and conventional X tail versions.

Miria F3L / F5-RES Specifications
Wing span	2.0 m	79 in
Wing area	36.0 dm2	558 sq in
Length	121 cm	47.6 in
Flying weight from	420 g	14.8 oz
Wing loading	11.7 g/dm	3.8 oz/sq ft
Aspect ratio	11.1
Wing airfoil	HB RES
Dihedral (EDA)	12.0º
Spinner Diameter	30 mm
Centre of Gravity	78-82 mm from wing leading edge
Controls	Rudder, elevator, spoiler

Miria F3L / F5-RES Typical Weights
Pod	60 g	2.1 oz
Boom and pushrods	30 g	1.1 oz
Centre panel	100 g	3.5 oz
Wing tips	100 g	3.5 oz
Tailplane	13 g	0.5 oz
Fin+Rudder	12 g	0.4 oz
Accessories	20 g	0.7 oz
Total structure	335 g	11.8 oz
Receiver	5 g	0.2 oz
Rudder & elevator servos	10 g	0.4 oz
Spoiler servo	5 g	0.2 oz
Battery	65 g	2.3 oz
Flying weight from	420 g	14.8 oz

Recommended RC

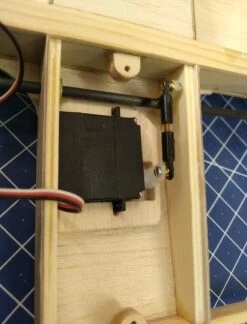

Rudder & elevator servos	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, KST X06, CHA DS06, EMAX ES09D
Spoiler servo	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, KST X06, CHA DS06, EMAX ES9051
Receiver	4 or 5 channel receiver to match your transmitter
Glider battery	Radient 1S 700 mAh LiPo, Dream-Flight 300 mAh 4.8V NiMH, HyperFlight 650 mAh 4.8V NiMH, Dream-Flight 700 mAh 4.8V NiMH, 1S 2600 mAh Li-Ion, 2S 300-600mAh LiPo
Elektro battery	2S 450 – 600mAh LiPo, 3S 300-450mAh LiPo

Control Throws
Rudder	17 mm each way
Elevator	10 mm up, 10 mm down
Spoilers	80º up
Spoiler mix	3 mm up elevator with 45º up spoiler

Electric Powertrain Recommendations
DYS D2225-19	2S 450mAh LiPo, 9×6, 10×5
DYS D2225-19	3S 450mAh LiPo, 7×3.5, 7×4, 8×4
Dualsky XM2225EG-23	2S 450mAh LiPo: 9×5, 10×5, 10×6
Dualsky XM2225EG-23	3S 400mAh LiPo: 7×4, 8×4, 8×5
Hacker A10-7L geared 4.4:1	3S 450mAh LiPo, 12×8, 13×8
