Offset DLG Throwing Blade

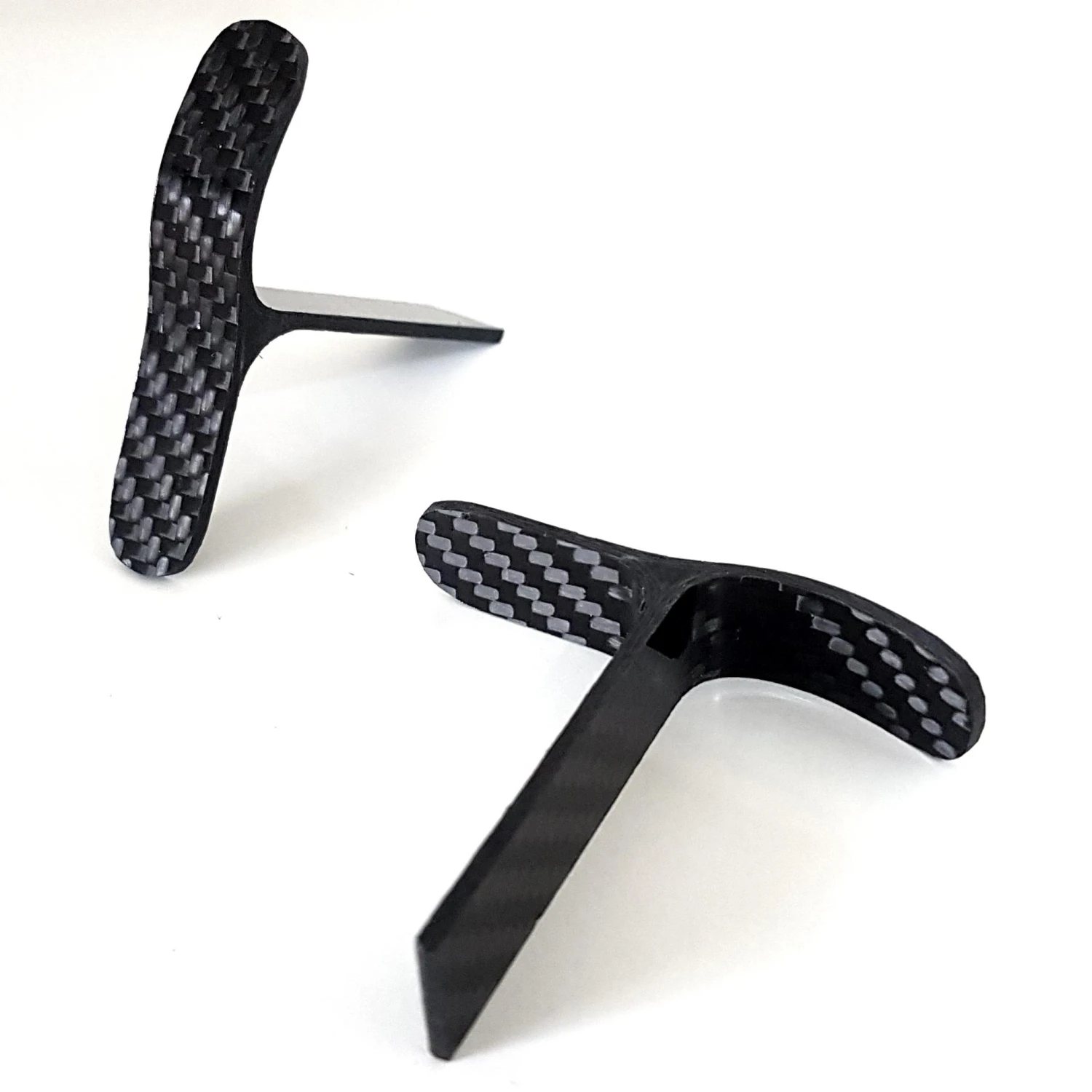

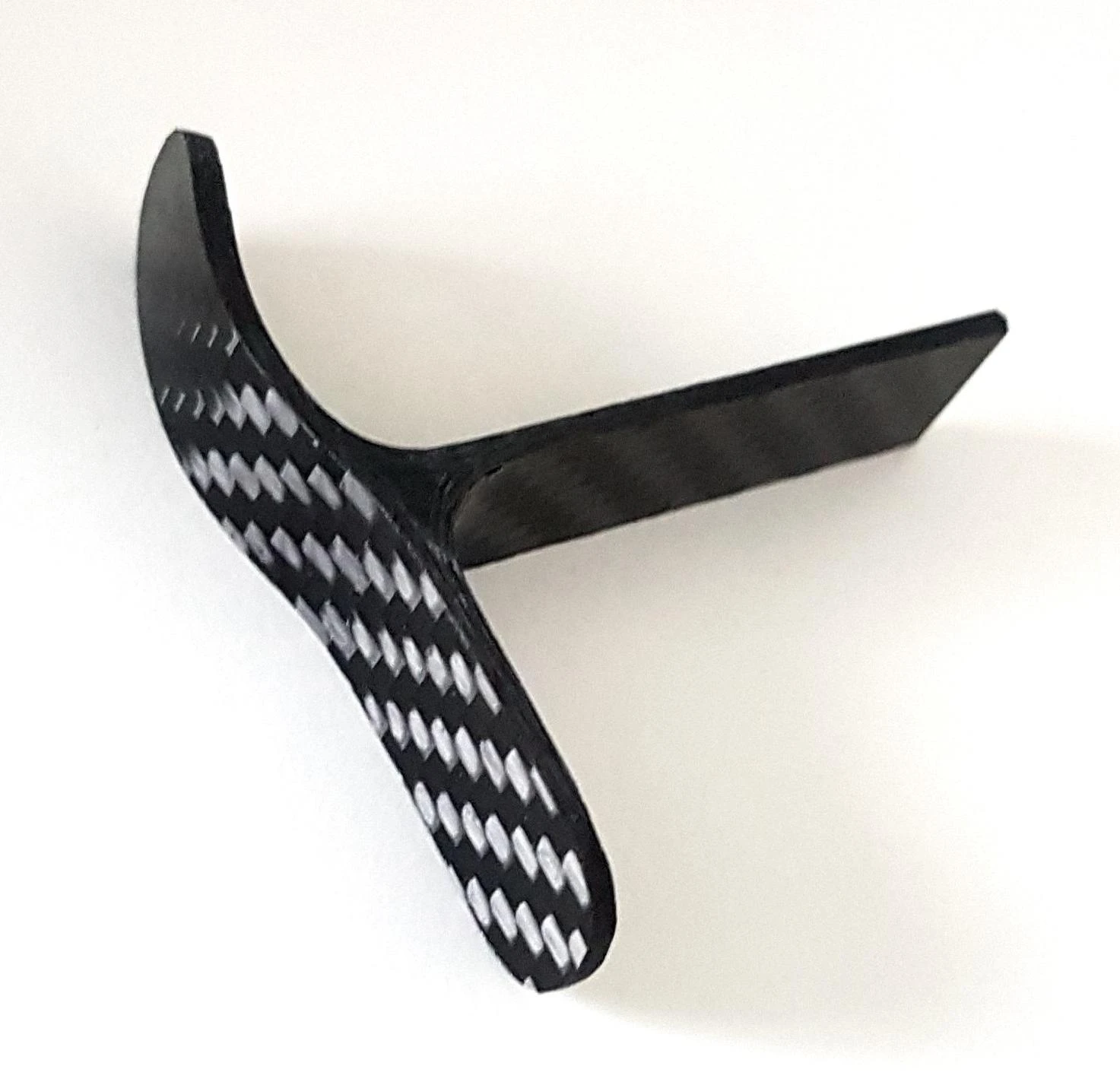

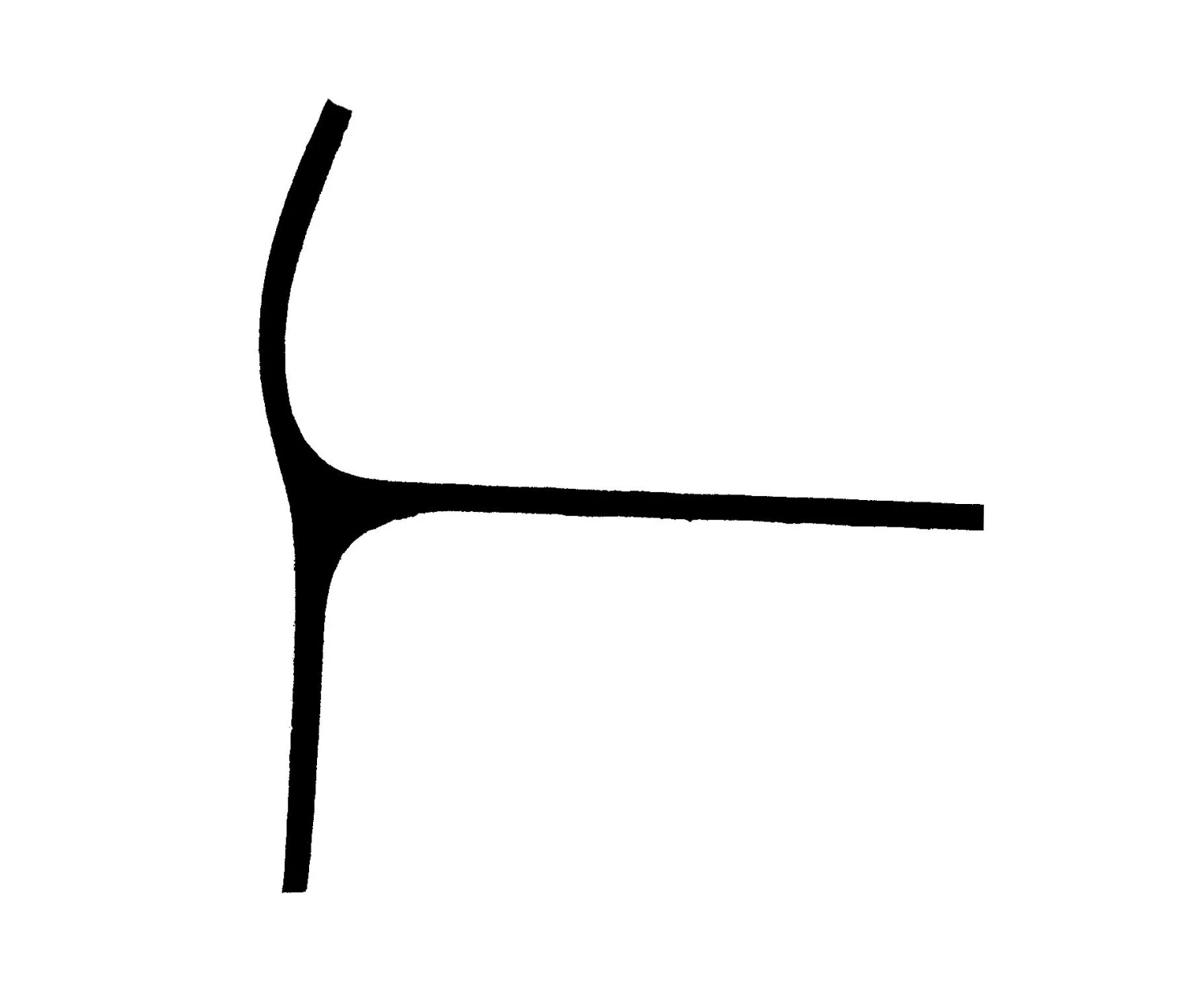

This high quality Curved Offset DLG Throwing Blade improves launch height and throwing comfort. Beautifully molded from carbon fibre, and contoured to maximise launch height and comfort. The offset allows for the discus launch glider wing’s dihedral angle, so the fingers stay approximately vertically aligned, even though the glider’s wing will be angled up by about 6 degrees.

ALL INFO SUBJECT TO CHANGE

Curved Offset DLG Throwing Blade
Weight as supplied	3.4 g un finished
Weight RFT	c 3 g finished
Max thickness of carbon	1.5 mm
Height of both blades	56 mm
Max width	11.5 mm
Length of tang	53 mm
Height of a single blade	27 mm

The weight can be decreased by reducing the thickness of the carbon towards the ends of the blades, and by profiling the edges, to approximate to a thin ellipse. see the attached Shaping Offset DLG Throwing Blades PDF below.

To fit, open the end of the model’s wing, and glue the tang inside the wing with epoxy or good quality thick CA. For excellent installation instructions see this T-Blade Installation RCGroups thread.

Also called a contoured DLG launch blade, a seagull throwing peg, a curved launch blade.
