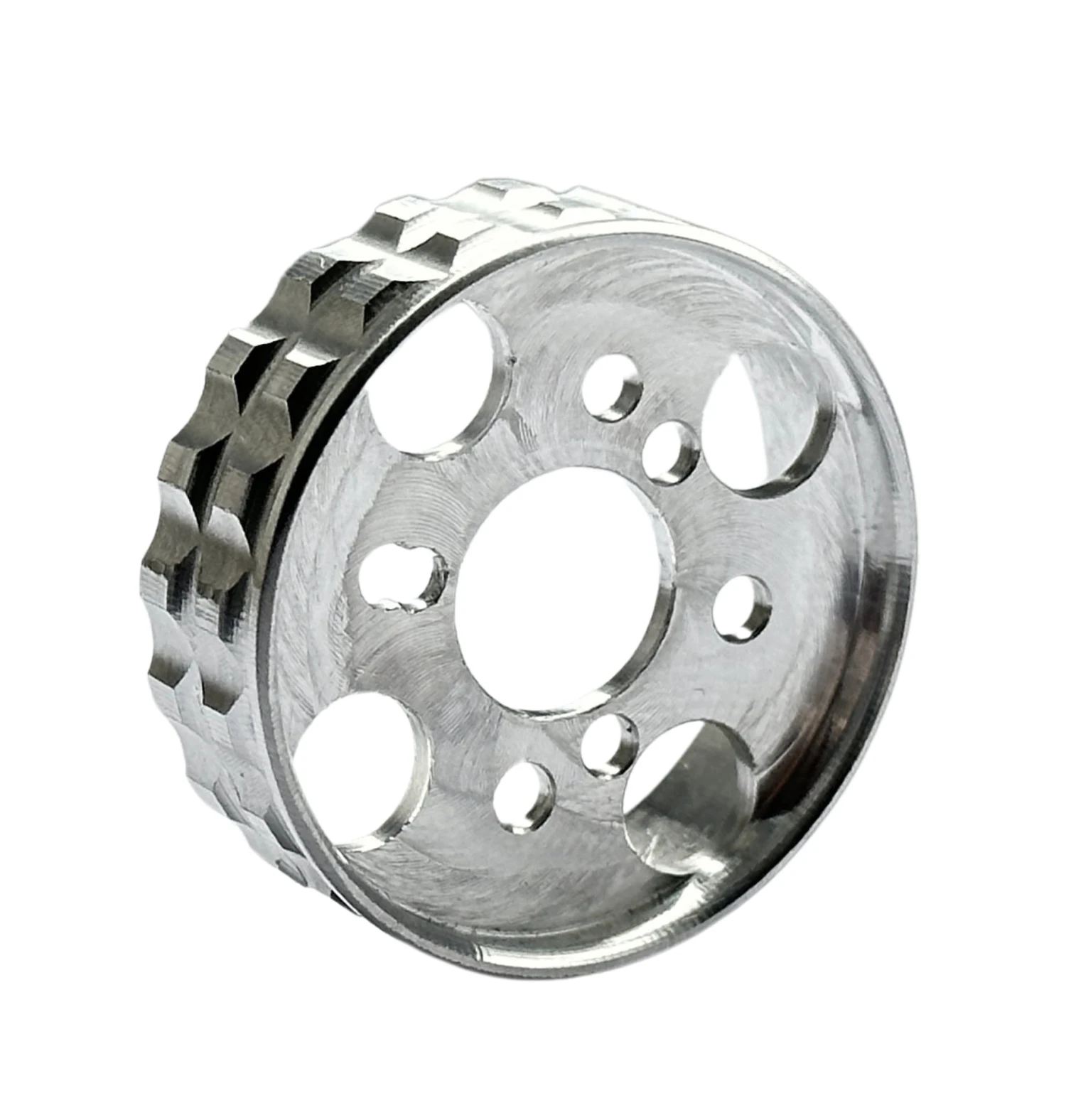

Powerline Turbo 10XX & Reisenauer 5:1 Motor Mount – 32mm

The PNC Innovations 32 mm Powerline 1010, 1015, 1020, 1025 & Reisenauer 5:1 Motor Mount is a beautifully CNC machined motor mount for securely attaching Powerline 1010, Powerline 1015, Powerline 1025 old and new Turbo motors and Reisenauer 5:1 gearbox motors and to the front of 32 mm diameter fuselages, like the Supra Pro, the Maxa, and most top performing F5J fuselages. This firewall also fits some Maxon 4.4:1 gearboxes with 3 mounting holes on a 14 mm diameter.

• Easy to install.
• Very strong.
• Superb machining.
• They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.

Powerline Turbo 10XX & Reisenauer 5:1 Motor Mount
Fuselage outside diameter	32 mm
Fuselage internal diameter	30 mm
Predrilled Powerline holes	4 holes on a 17.5 mm circle
Predrilled Reisenauer holes	3 holes on a 14 mm circle
Motor mounting hole diameter	2.5 mm
Weight	3.5g
