Schloiderding V2 “Spinthing” 1.2m

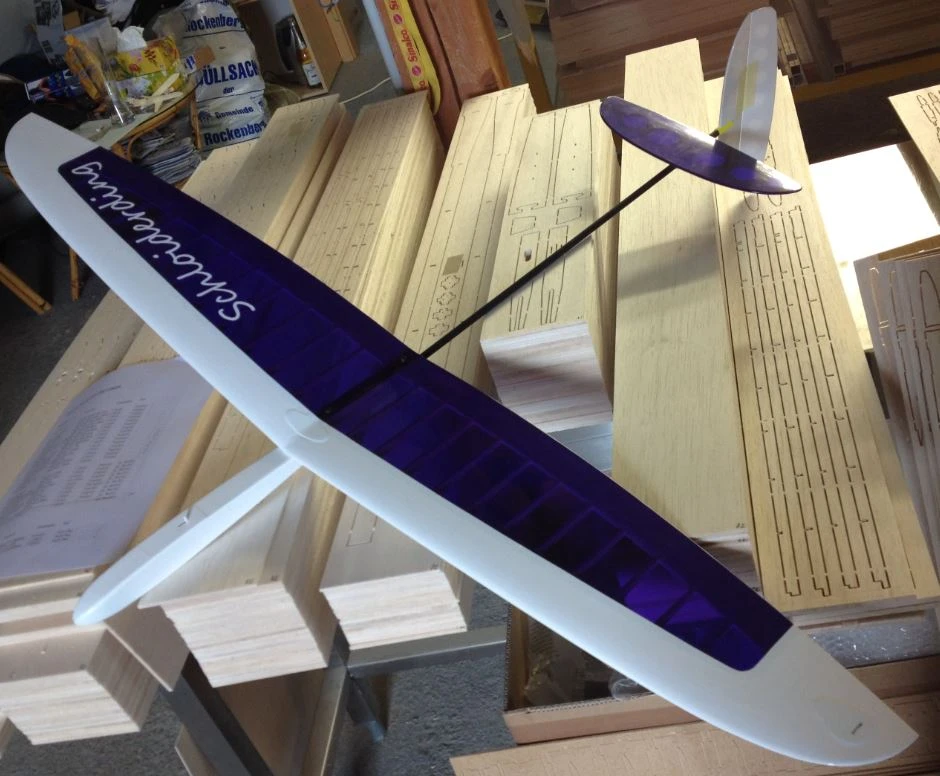

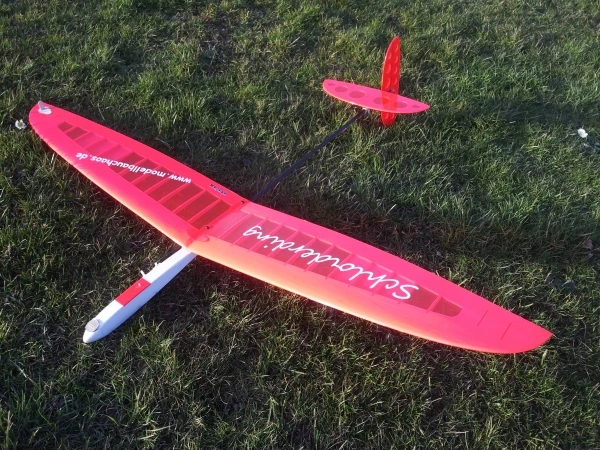

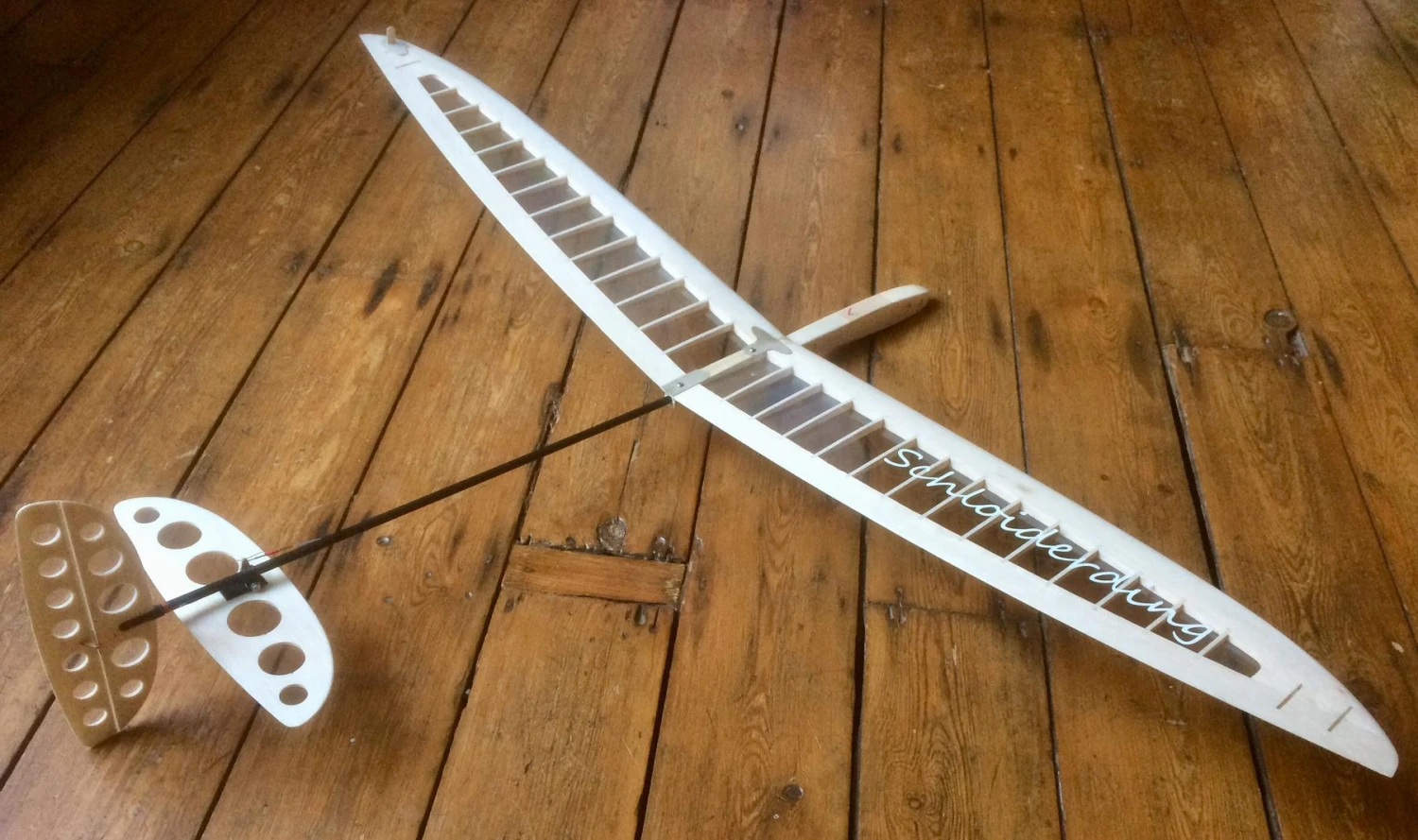

The Schloiderding V2 (we are calling it Spinthing) is an elegant CNC cut balsa discus launched glider that can be built quickly, looks beautiful, and has excellent performance. The Schloiderding “Spinthing” has outstanding flying qualities and is attractive to beginners and experts alike. Thanks to the all flying tailplane the model can be trimmed to any speed range and by altering the CG and trim can be adapted to any personal flying style very quickly and easily. The excellent balsa and carbon construction allows the Spinthing to be built down to a flying weight of about 130 g, thanks to the superb hand picked balsa supplied.

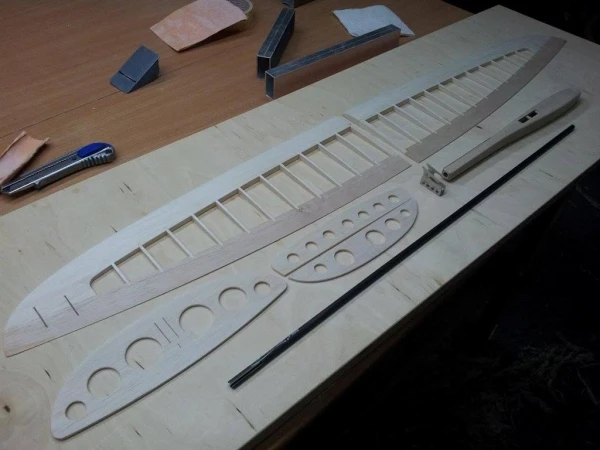

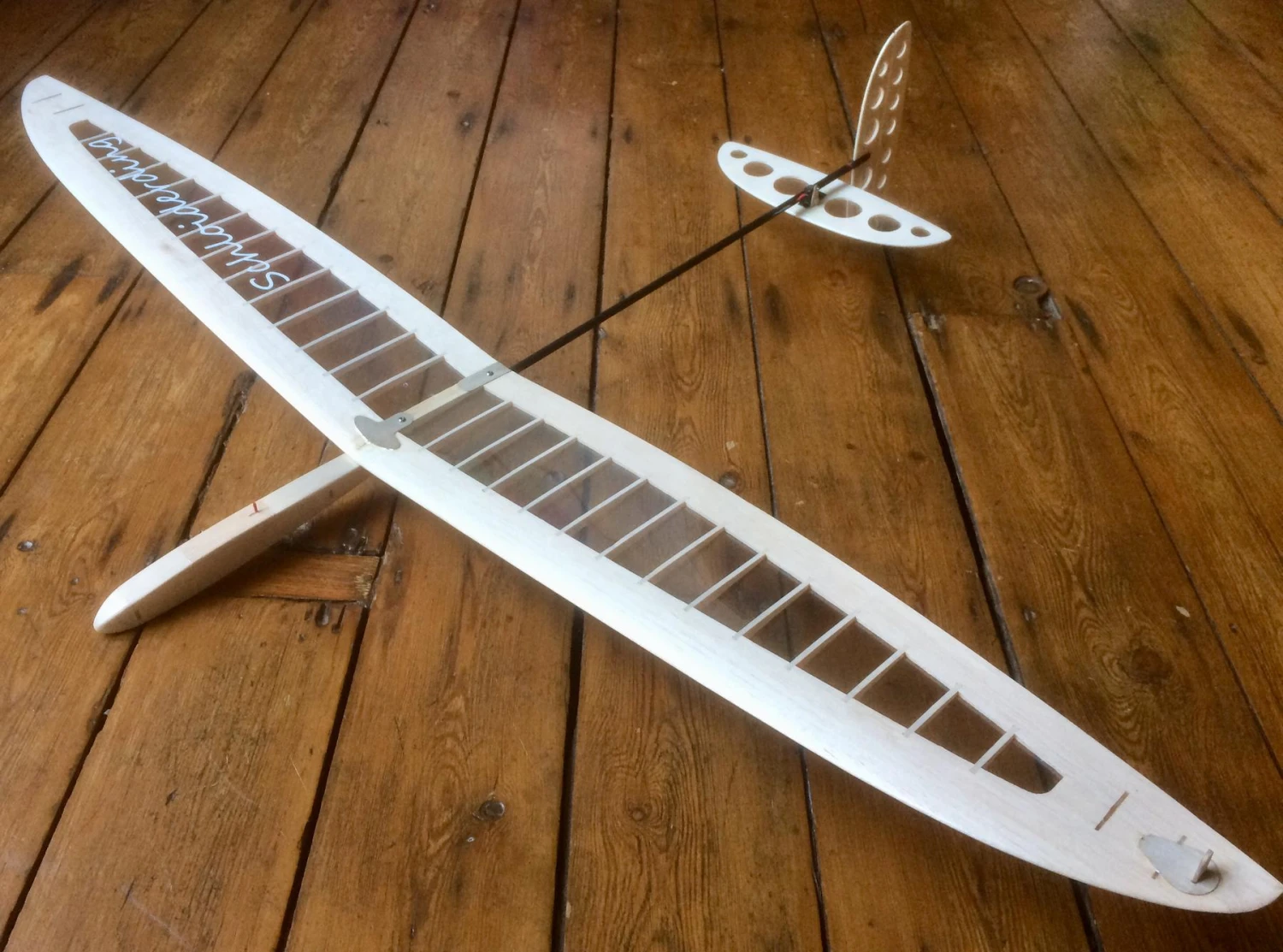

The structure, except for the carbon tail tube, is completely built from wood, and so is very easy to repair. When building the front and rear parts of the wing have to be carved from the supplied balsa parts. To assist in this a clever sanding aid is included in the kit. With this tool sanding the surface to shape is very easy and fast and not at all problematic.

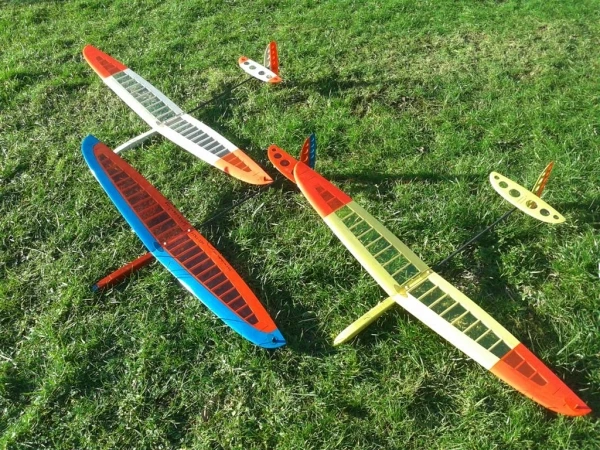

The kit is supplied with the option to build to three different wing spans:

– 100 cm (39″) for highest launches and lively handling. This is ideal for slope soaring, especially if the dihedral is reduced or even eliminated.

– 105 cm (41″) the standard compromise between snappy handling, high launch and top performance.

– 120 cm (47″) for maximum all out and thermal performance (our favourite).

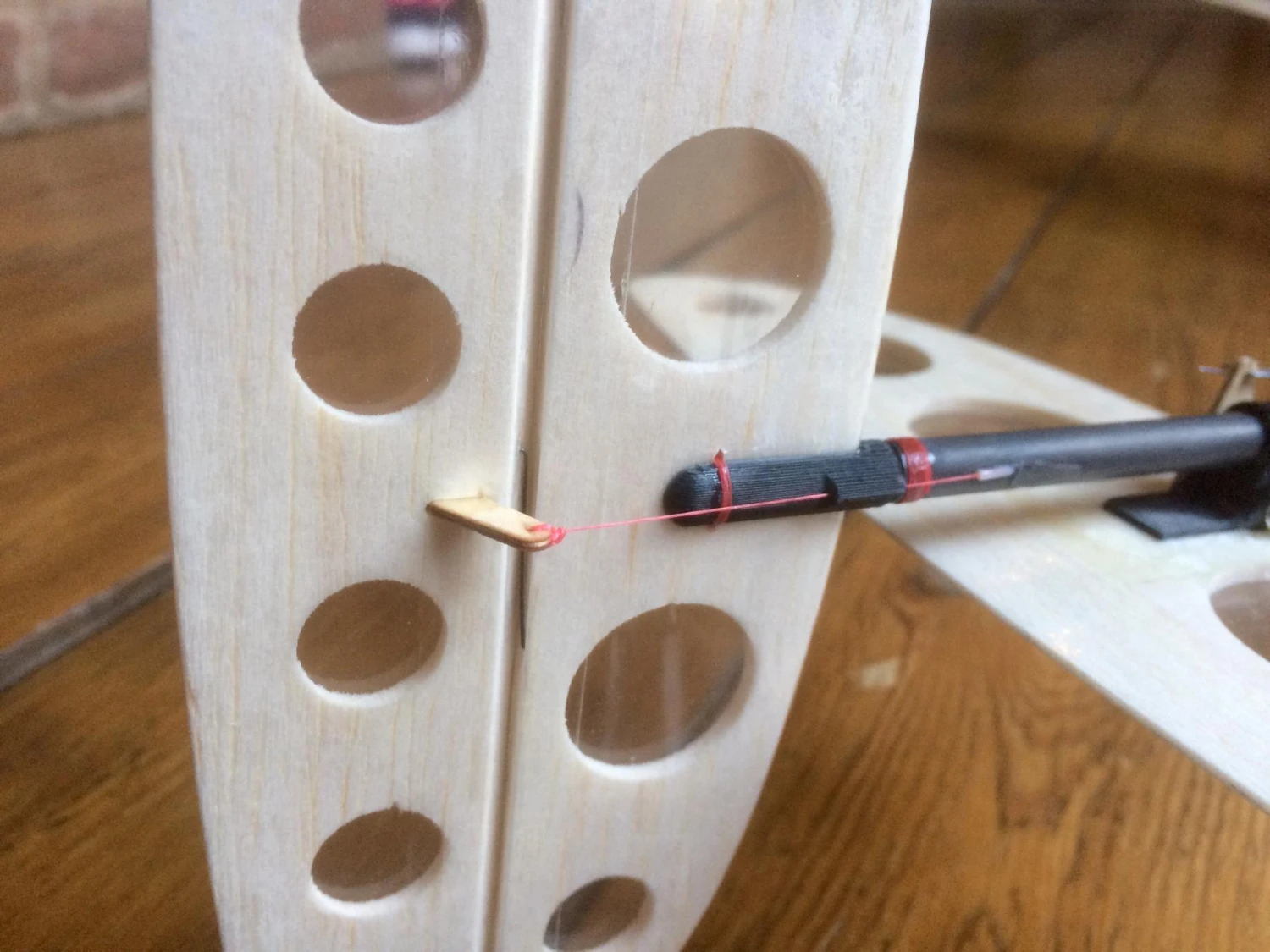

All parts are included in the kit including pull-spring control runs and an excellent plan with all 3 possible wing layouts. The span is determined by shortening the wing front and rear parts by removing material on the inner side (from the centre). Covering (Oralight), glue, etc is needed to build the model.

The kit is straightforward to built but no instructions are supplied. The plans are clear and well annotated (in German) and a great build log can be found here – use Google Translate. Our thanks to Mark Cornwell for use of his lovely photos.

Schloiderding V2 Spinthing Specifications
Wing span	1.20 m	47 in
Wing area	14.9 dm2	231 sq in
Length	86 cm	34.0 in
Flying weight from	131 g	4.6 oz
Wing loading	8.8 g/dm	2.9 oz/sq ft
Aspect ratio	9.7
Wing airfoil	Proprietary
Dihedral angle	7.7º
Centre of Gravity	57-61 mm from wing leading edge
Controls	Rudder, elevator

Schloiderding V2 Spinthing Typical Weights
Total structure	105.0 g	3.7 oz
Receiver	5.0 g	0.2 oz
Rudder servo	4.5 g	0.2 oz
Elevator servo	4.5 g	0.2 oz
Battery	12.0 g	0.4 oz
Noseweight	10.0 g	0.4 oz
Flying weight	131.0 g	4.6 oz

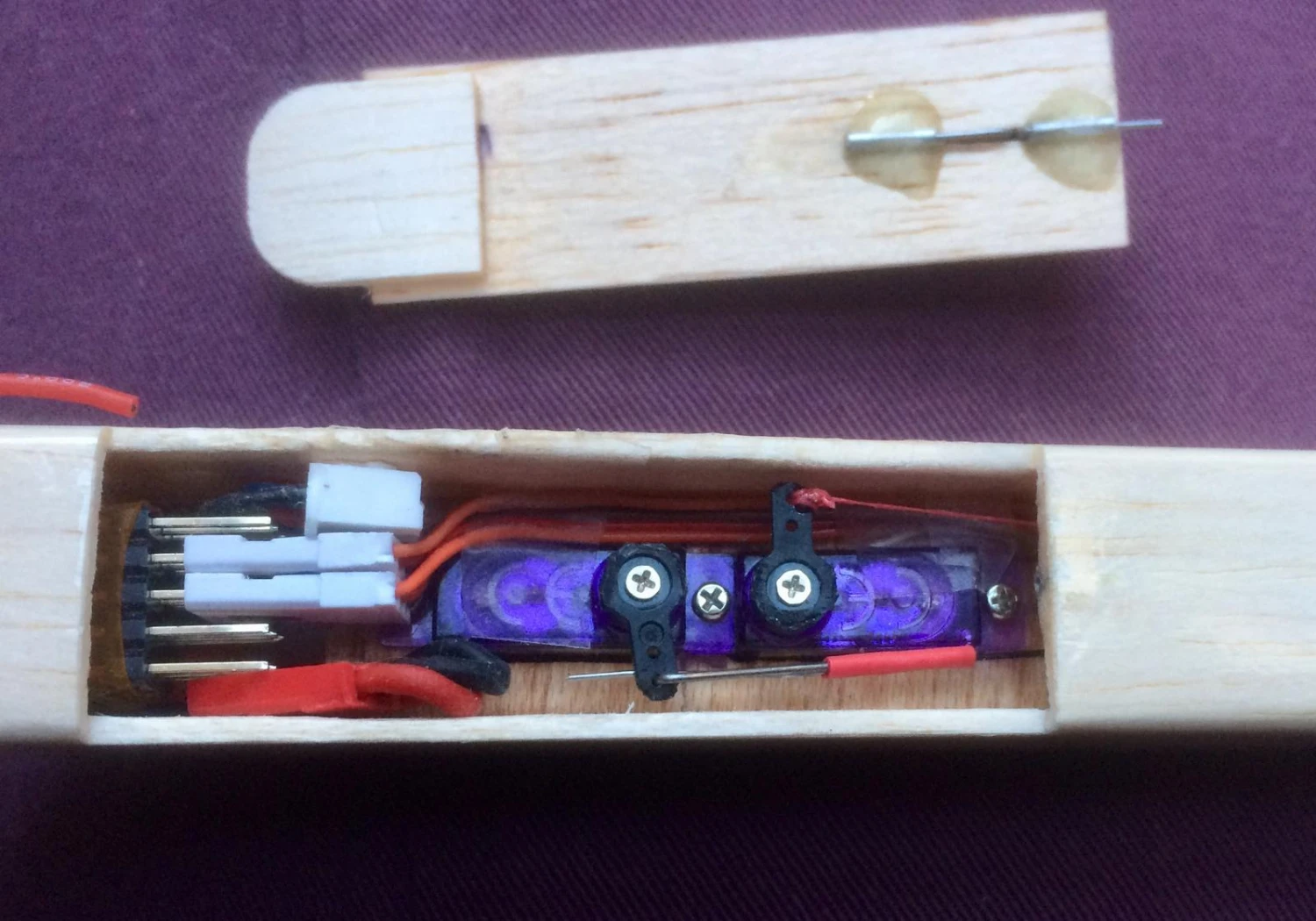

Recommended R/C-nano gear only
Elevator & rudder servos	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Hitec HS-40, KST X06
Receiver	Spectrum AR6610T, Lemon LM0034, Futaba R6004FF*, Orange DSM2 compatible, Jeti Duplex R4 & R5, Multiplex Mlink RX-6-DR Light*, FrSky D4R II
Battery	HyperLipo 2S 175 mAh, HyperLipo 2S 300 mAh, 150 mAh 4.8V, Dream-Flight 300 mAh
