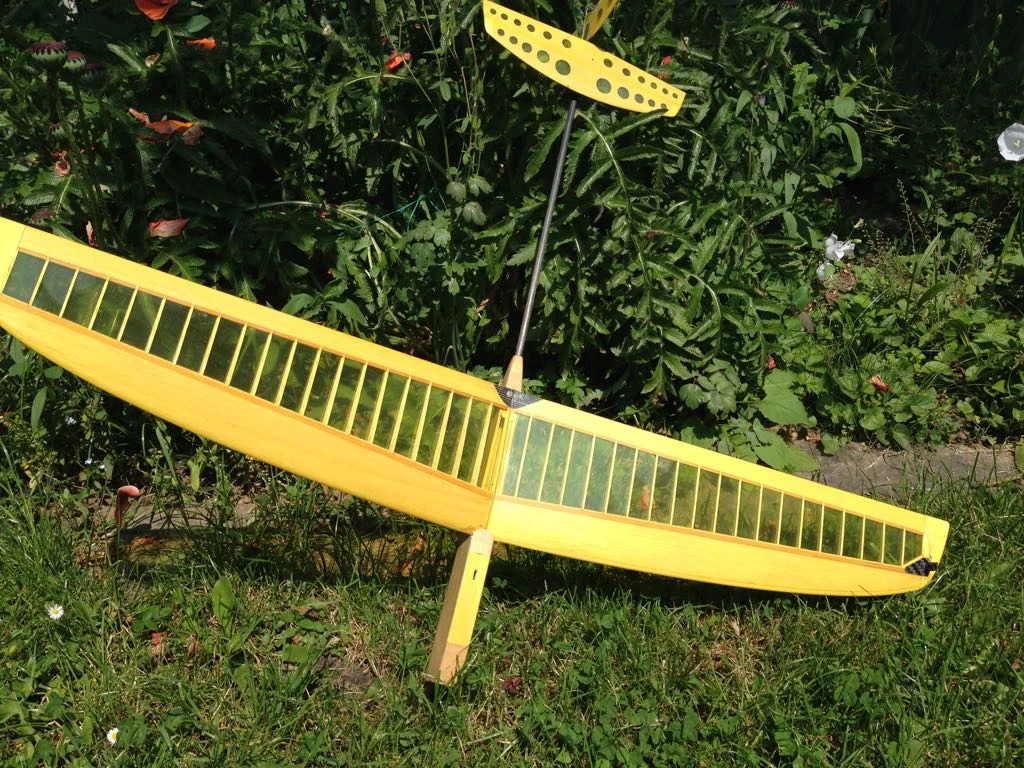

Spinnin’ Birdy RE 1m

If you like small balsa gliders then you will love our rudder-elevator Spinnin’ Birdy. Convenient size, low sink speed, and a “built-in” thermal sniffer. This CNC and laser cut balsa and carbon kit is quick to build and flies excellently,

If you are on a slope any no one can fly you are okay with the Spinnin` Birdy! A relaxed twist and this 1m (40″) DLG almost vanishes upwards in with straight climb to the heavens. Even in totally dead air flight times of one minute are the rule. A few years ago we only dreamed of performance like this and now anyone can experience it.

Have you always wanted to participate in a discus launched glider competition? But the financial cost was too great? Now you can enter a DLG event and fly with the pros without breaking the bank.

Even if you are not sure you want to make full 360 degree launches you can make 180 degree SAL throws and still get a good height.

Just try it.

Kit Contents:
CNC-Milled and laser components
Multi-colored full size plan
German-language building instructions
All small parts….

Spinnin Birdy RE Specifications
Wing span	1.00 m	39 in
Wing area	14.4 dm2	223 sq in
Length	85 cm	33.5 in
Flying weight from	175 g	6.2 oz
Wing loading	12.2 g/dm	4.0 oz/sq ft
Aspect ratio	6.9
Wing airfoil	Proprietary
Dihedral angle	7.0º
Centre of Gravity	TBA mm from wing leading edge
Controls	Rudder, elevator

Spinnin Birdy RE Typical Weights
Total structure	140.0 g	4.9 oz
Receiver	5.0 g	0.2 oz
Rudder servo	4.5 g	0.2 oz
Elevator servo	4.5 g	0.2 oz
Battery	12.0 g	0.4 oz
Noseweight	9.0 g	0.3 oz
Flying weight	175.0 g	6.2 oz

Recommended R/C-nano gear only
Elevator & rudder servos	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Hitec HS-40, KST X06
Receiver	Spektrum AR6260*, AR6100e, AR400, Futaba R6004FF*, Orange DSM2 compatible, Jeti Duplex R4 & R5, Multiplex Mlink RX-6-DR Light*, FrSky D4R II
Battery	HyperLipo 2S 175 mAh, HyperLipo 2S 300 mAh, 150 mAh 4.8V, Radient 1S 500 mAh, 1S 300 – 500mAh LiPo
