Universal Mount – 32mm 16 & 19mm Motor Holes

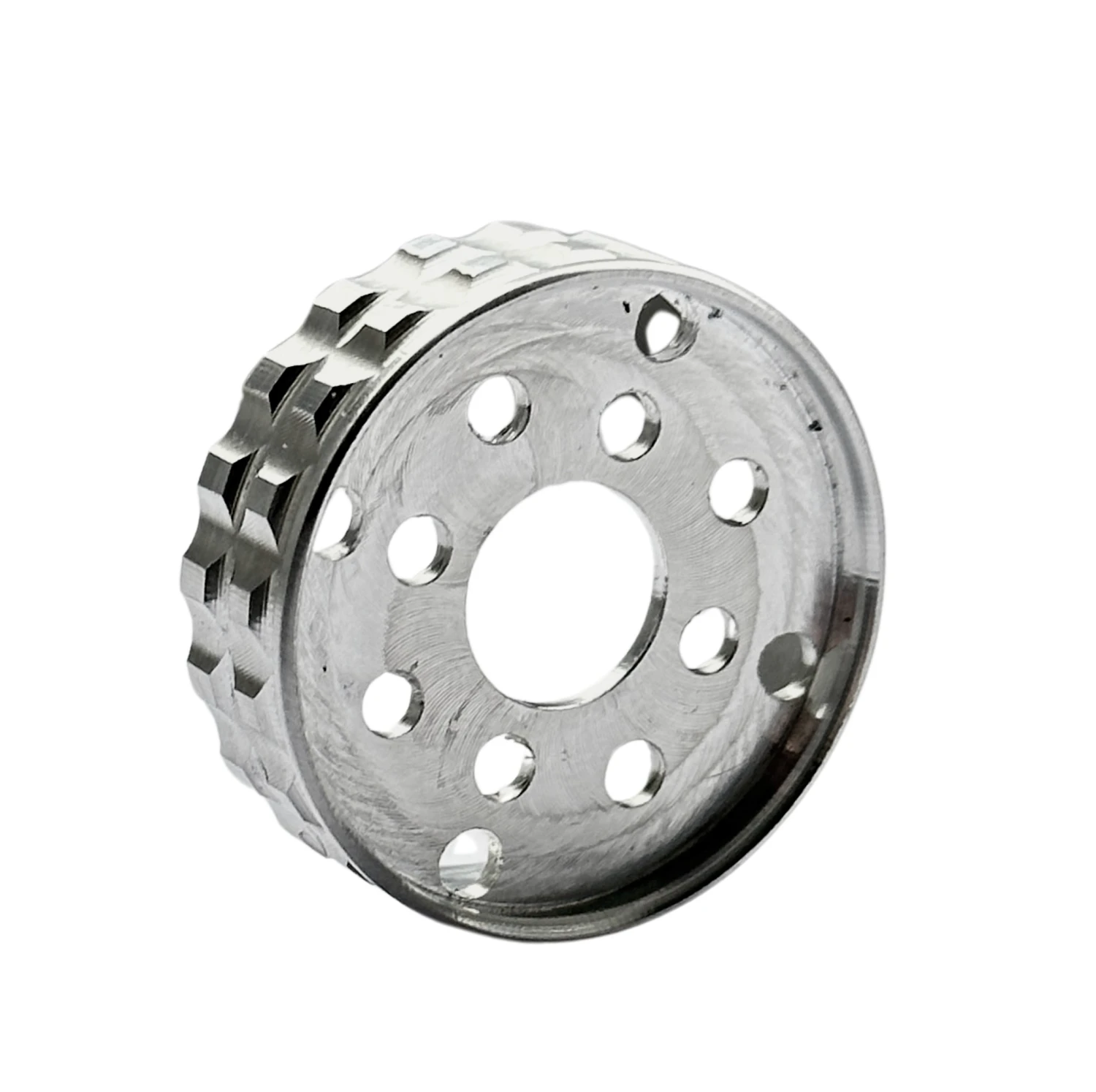

The PNC Innovations 32 mm Kontronik KPG 25 / Speed 480 / Speed 600 / Universal Motor Mout is a beautifully CNC machined motor mount for securely attaching Kontronik KPG 25 / Speed 480 / Speed 600 / Mega and may orther motors to the front of 32 mm diameter fuselages. The bolt hole pattern is as shown in the second photo.

• Easy to install.
• Very strong.
• Superb machining.
• They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.

32mm Universal Motor Mount
Fuselage outside diameter	32 mm
For fuselage internal diameter	30 mm
Firewall internal diameter	27.5 mm
Centre hole	12.1 mm
Predrilled hole pattern 1	4 holes on a 16 mm diameter circle
Predrilled hole pattern 2	4 holes on a 19 mm diameter circle
Predrilled hole pattern 3	3 holes on a 14 mm diameter circle
