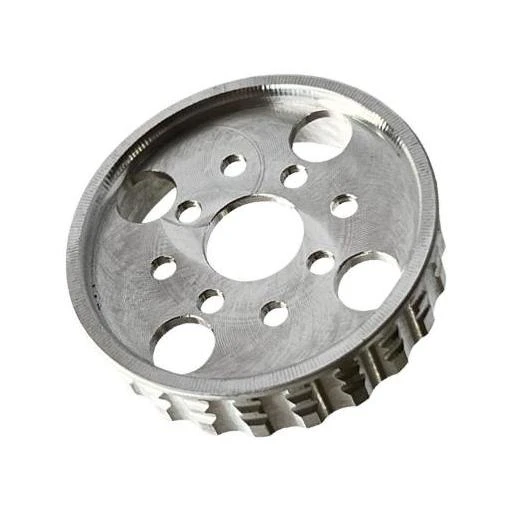

Universal Mount – 38mm 16 & 19mm Motor Holes

The PNC Innovations 38 mm Kontronik KPG 25 / Speed 480 / Speed 600 / Universal Motor Mout is a beautifully CNC machined motor mount for securely attaching motors with a 19mm PCD to the front of 38 mm diameter fuselages.

• Easy to install.
• Very strong.
• Superb machining.
• They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.

38mm Universal Motor Mount
Fuselage outside diameter	38 mm
For fuselage internal diameter	36 mm
Firewall internal diameter	23.5 mm
Centre hole	12.1 mm
Predrilled hole pattern 1	4 holes on a 16 mm diameter circle
Predrilled hole pattern 2	4 holes on a 19 mm diameter circle
Predrilled hole pattern 3	3 holes on a 14 mm diameter circle

Photos to be updated.
