Eliminating the gearbox simplifies the powertrain and reduces the risk of failure. It also results in requiring a smaller (less efficient) propeller. In the past that was a disadvantage as powertrain efficiency was essential for good performance. However with the current state of technology excellent performance can be achieved even with small props, and they do offer several advantages, namely:
- Less stuff hanging out in the wind and less glide drag, so overall better glide performance, especially at speed.
- Usually a higher pitch speed is obtained, allowing very fast transitions to a low level thermal a long way away (if you are one of those god-pilots who know there the lift is).
- Smaller propellers reduce the effects of torque, making the initial climb out easier.
| XPower F2915/12 XLight Specifications | |
|---|---|
| KV | 1600 RPM/V |
| Max current | 35A for 30s |
| Power | 340W |
| Manufacturer’s Rm | 42 mOhm |
| Dimensions | Ø28.1×38.7 mm |
| Shaft diameter | 5.0 mm |

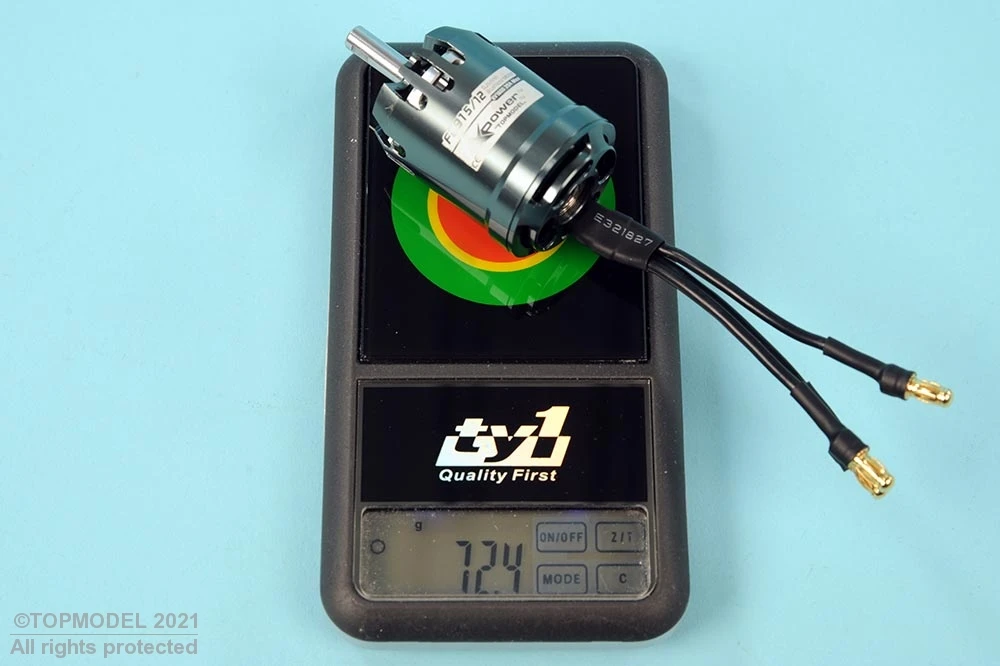

| Weight | 72 g |
| Number of poles | 12 |
| Recommended number of cells | 3 LiPo |
| Recommended props | 10×5-11×6″ |
Measurements
Prop: XPower CARBON 10×6″ + GM carbon spinner 32mm
Controller: XPower Xreg30 V5
Battery pack: Hot-LiPS VHD 600 3S1P
RPM: 10600
Current drain: 35A
Static thrust: 1.3kg
